Sea Side Aquatics PP65-WIFI Rotary Drum Filter 75 Micron 17,000 GPH up to 34,000 Gallons

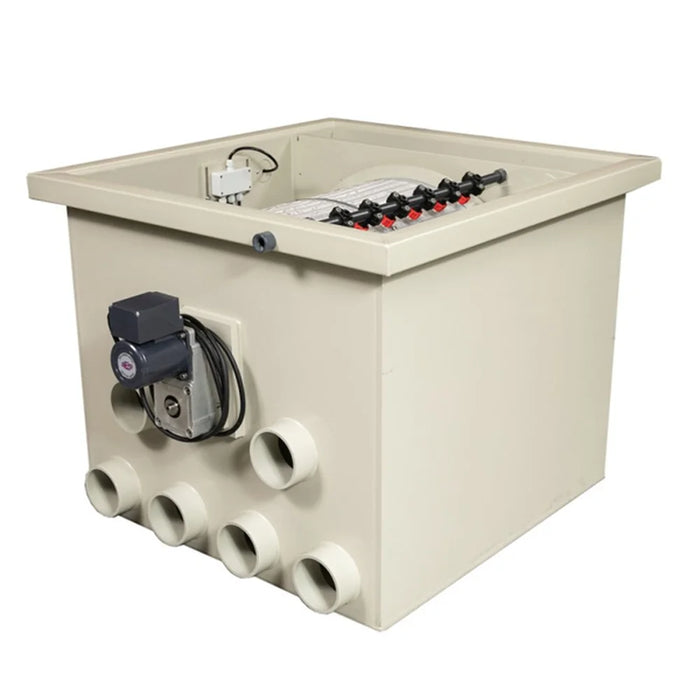

Dirty water enters the filter and passes through a rotating drum that physically separates debris from the water. As the drum turns, solids collect on the screen and get rinsed off automatically, keeping your water flowing without interruption. A side-mounted drive motor spins the drum, while the internal spray bar with its red-tipped nozzles runs across the top and the control box sits on the lid.

• Handles a max flow of 17,000 GPH
• Rated for ponds up to 34,000 gallons
• Works as gravity, airlift, or pump fed
• Low 17 cm installation height for flexible placement
• Ships with an external cleaning pump (installation required)

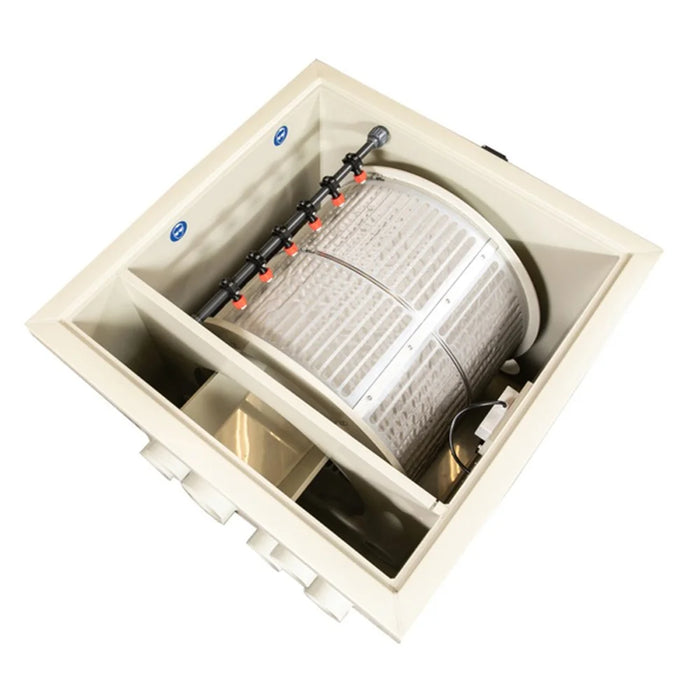

At the heart of the unit sits a 60 x 50 cm drum wrapped in a fine stainless steel screen. Water flows through the screen while suspended solids stay behind, then get carried up and flushed into the waste channel as the drum rotates. Viewed from above, you can see the full drum wrapped in the 75 micron stainless steel screen, the spray bar with red nozzle valves running along one side, and the internal water chambers of the beige housing. The result is continuous mechanical filtration that never lets the smallest particles slip back into your pond.

• PP 20 mm drum for lasting rigidity
• Turn and flush manual operation available
• Adjustable rinse level to match your load
• Adjustable turn and rinse time for full control

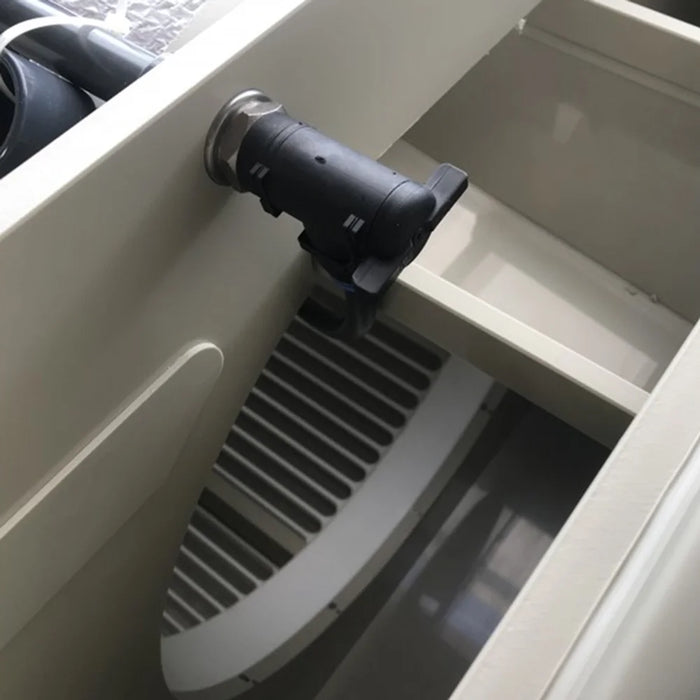

Clogged screens are the death of most pond filters. Here, the external cleaning pump drives water through the spray bar, and a black high-pressure spray nozzle mounted above the curved 75 micron stainless steel drum screen blasts collected debris off the screen and into the waste container. This continuous automatic rinsing keeps the screen open and filtering efficiently, even down at the finest particle sizes.

• Spray bar with removable mounting
• High pressure PVC rated to 40 bar
• Removable waste water container for easy disposal
• 110 mm waste water drain

The filtering surface is a 75 micron stainless steel 316 screen panel, tough enough to resist corrosion and fine enough to capture debris most filters miss. Paired with the drum's continuous rotation and rinsing, it delivers reliably clean water without the wear you get from mesh that has to be pulled and washed by hand.

• 75 micron particle capture
• Stainless steel 316 screen construction

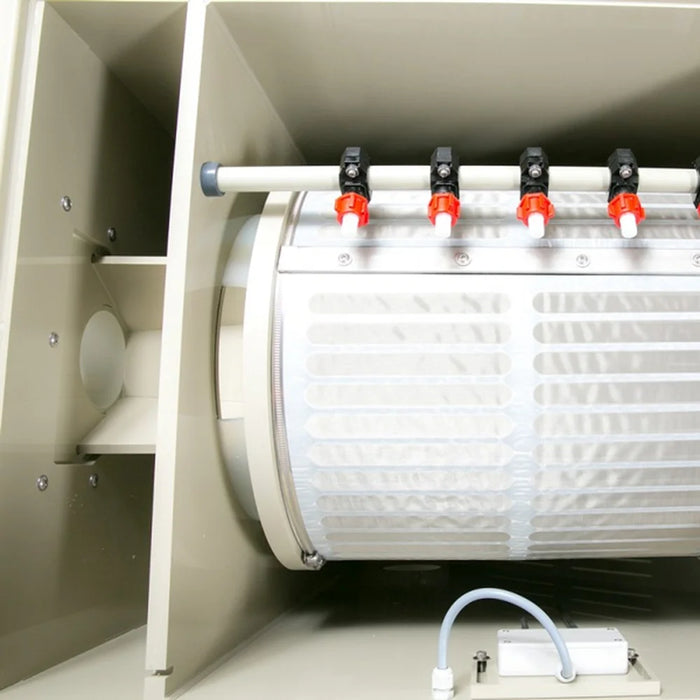

• On-board control box mounted on the lid and connected at the base of the filter

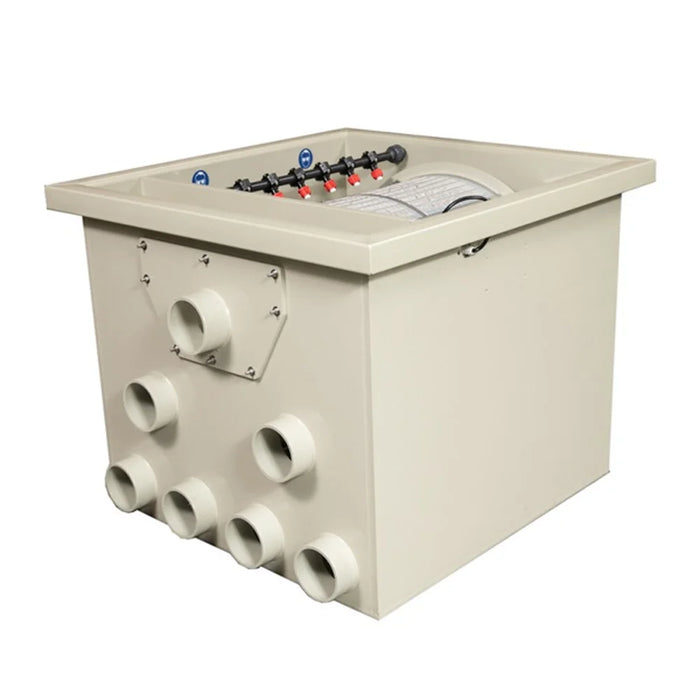

Plumbing this filter into your setup is straightforward thanks to a generous port array. With multiple 110 mm inputs and outputs across the front panel, complete with a bolted access plate, you can plumb high flow rates and split returns however your pond layout demands, including dedicated outputs for pump fed installs.

• 6 x 110 mm inputs
• 6 x 110 mm outputs, including 2 extra 110 mm outputs for pump fed setups
• Compatible with gravity, airlift, and pump fed configurations

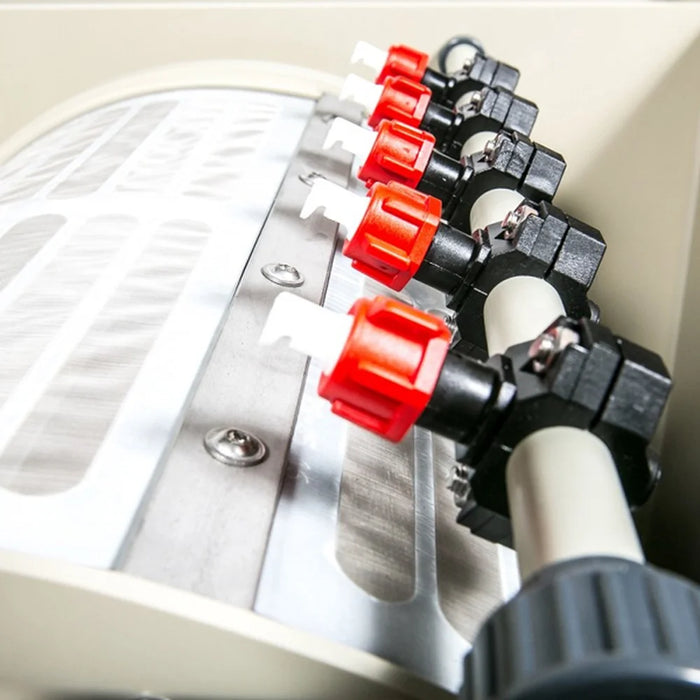

The row of high pressure nozzles along the spray bar is what makes the self-cleaning cycle so effective. Five red-capped high-pressure PVC nozzle fittings with white adjusters and black clamps sit mounted on a stainless steel bracket above the perforated drum screen, and each nozzle directs a focused stream across the drum, clearing trapped solids in a single pass. The removable mounting means maintenance is quick when you do need to service it.

• High pressure PVC spray bar rated to 40 bar
• Removable mounting for easy access
• Built from stainless steel 316/304 hardware with silicone seals
