Sea Side Aquatics PP100-WIFI Rotary Drum Filter 75 Micron 26,400 GPH up to 52,800 Gallons

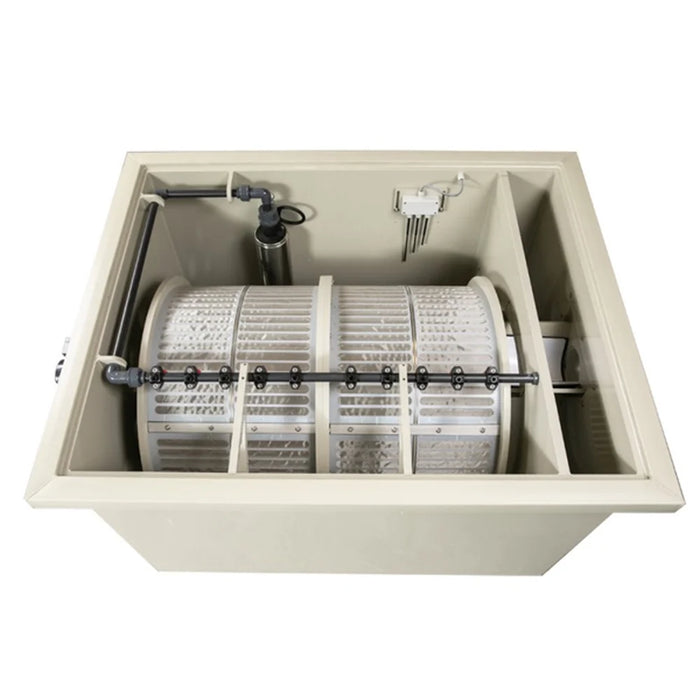

Dirty water flows into the tank and passes through a slowly rotating drum that physically separates debris from the water column. The perforated 75 micron stainless steel 316 screen panel traps micro debris that ordinary filters miss, then the waste gets flushed away on its own. Inside the beige tank you can see the full rotating drum with its stainless steel screen panels, the spray bar running across the top, the internal pump piping and a wall-mounted control sensor unit.

• Drum size: 60 x 80 cm diameter with a PP 20 mm drum body
• Screen: perforated 75 micron panels in corrosion-resistant stainless steel 316
• Handles big water: up to 26,400 GPH and ponds as large as 52,800 gallons
• Flexible feed: works gravity fed, airlift fed, or pump fed

The result is water that stays clear because the fine mesh removes waste particles other systems let slip straight back into your pond.

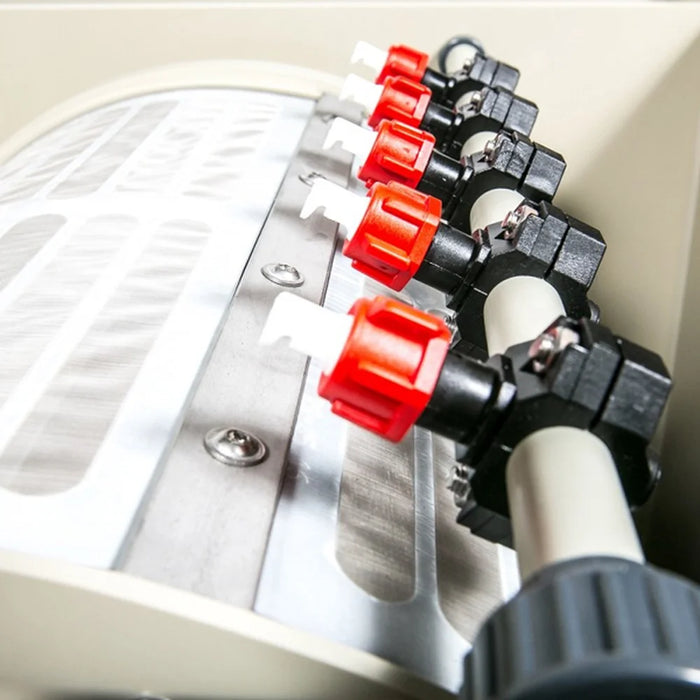

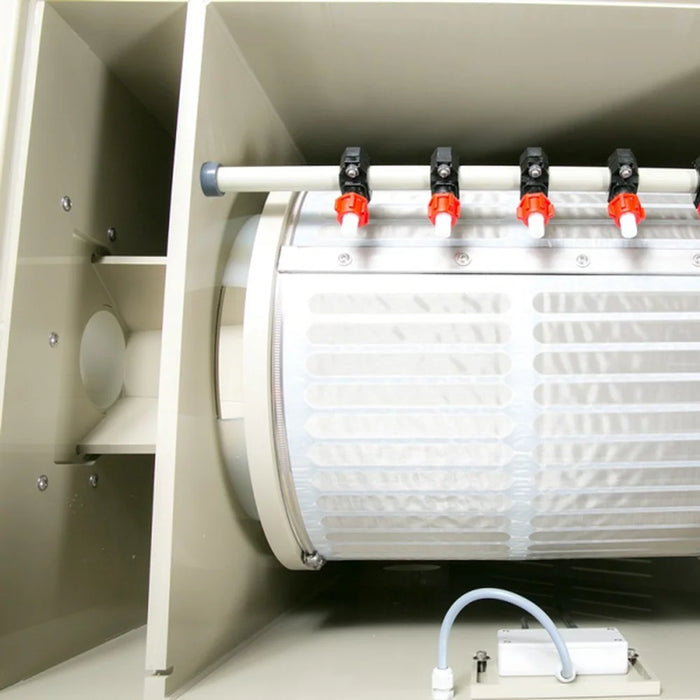

The screen never gets a chance to clog because a spray bar blasts it clean on a schedule you set. High-pressure jets rinse the trapped debris off the mesh and wash it into the waste channel, so filtration stays efficient even on the smallest particles. Five red-capped high-pressure spray nozzles sit on black clamp fittings along the grey PVC bar to deliver an even rinse across the drum.

• Spray bar: high pressure PVC rated to 40 bar with a removable mounting for easy service
• Spray nozzles: five red-capped high-pressure nozzles on black clamp fittings along a grey PVC bar
• Waste handling: removable waste water container plus a 110 mm waste water drain
• Rinse level adjustable so you dial in how the flush behaves
• Turn and rinse time adjustable to match your pond load

An external cleaning pump is included and required for installation, giving the spray bar the pressure it needs to keep the drum spotless.

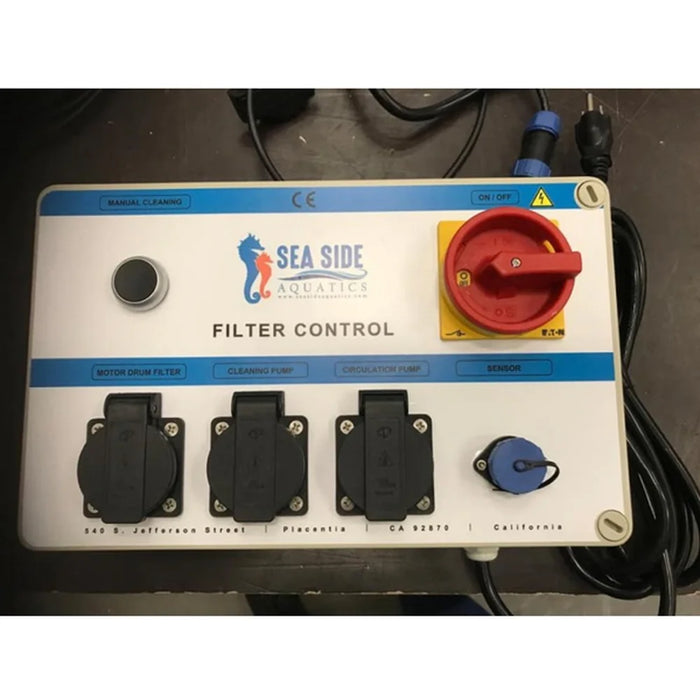

Everything runs from a Sea Side Aquatics branded control box mounted right on the filter, so you manage the Sea Side Aquatics PP100-WIFI Pond Filter without hunting for scattered components. Labelled sockets connect the drum motor, cleaning pump, circulation pump, and sensor, a manual cleaning button handles on-demand rinses, and a red rotary isolator switch cuts power when you need it.

• Turn and flush manual operation for on-demand cleaning at the push of a button
• Rinse level adjustable and turn/rinse time adjustable for full control over cycles
• Protective high pressure PVC cover shields the working parts

Tune the settings once to suit your fish load and let the automatic cycles handle the rest.
