Sea Side Aquatics PP-35 WIFI Rotary Drum Filter 75 Micron 9,250 GPH up to 18,000 Gallons

Sea Side Aquatics PP-35 WIFI Drum Filter for Crystal Clear Pond Water

Tired of cloudy water and fine debris that ordinary filters just let slip through? Your fish deserve better. This Rotary Drum Filter catches particles right down to 75 microns, physically separating dirt from your water and flushing it away on its own. No constant scrubbing, no clogged screens, just clean water flowing back to a healthier pond.

• Fine filtration: Traps particles down to 75 microns using a 75 micron stainless steel 316 screen panel.
• Self-cleaning: Automatic spray bar rinses the drum screen so it never clogs, keeping filtration running at full strength.
• High flow capacity: Handles up to 9,250 GPH, suited for ponds up to 18,000 gallons.
• Flexible feed options: Works as gravity, airlift, or pump fed to match your existing setup.
• Low profile: Just 17 cm installation height for easier placement.
• Plumbing connections: 4 x 110 mm inputs, 2 x 110 mm outputs, plus 4 extra 110 mm side outputs for pump fed installations, and a 110 mm waste water drain.
• Included cleaning pump: External cleaning pump comes in the box and is required to power the rinse cycle.
• Adjustable controls: Onboard control box lets you set rinse level, turn and rinse timing, or trigger a manual flush.
• Durable build: PP housing and drum with stainless steel 316/304 hardware and a silicone seal for long-term corrosion resistance and a watertight fit.

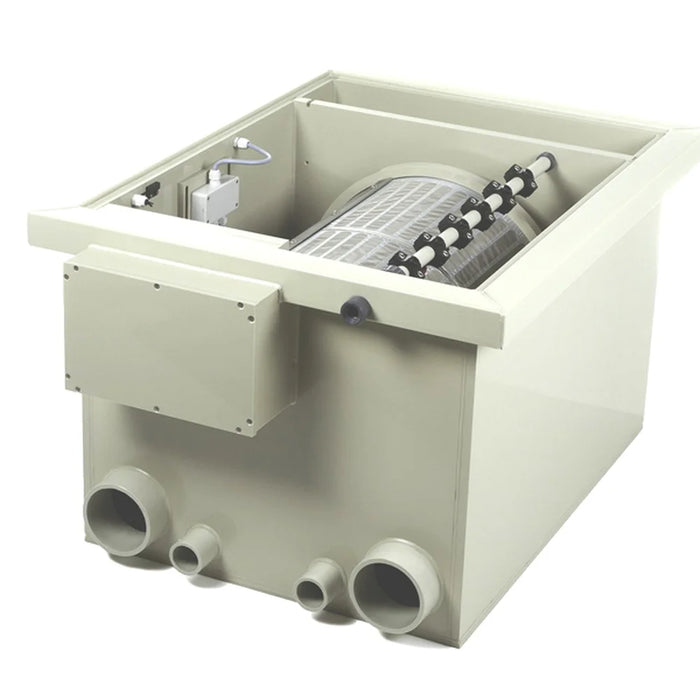

Micron Filtration Explained on the Sea Side Aquatics PP-35 WIFI RDF Filter

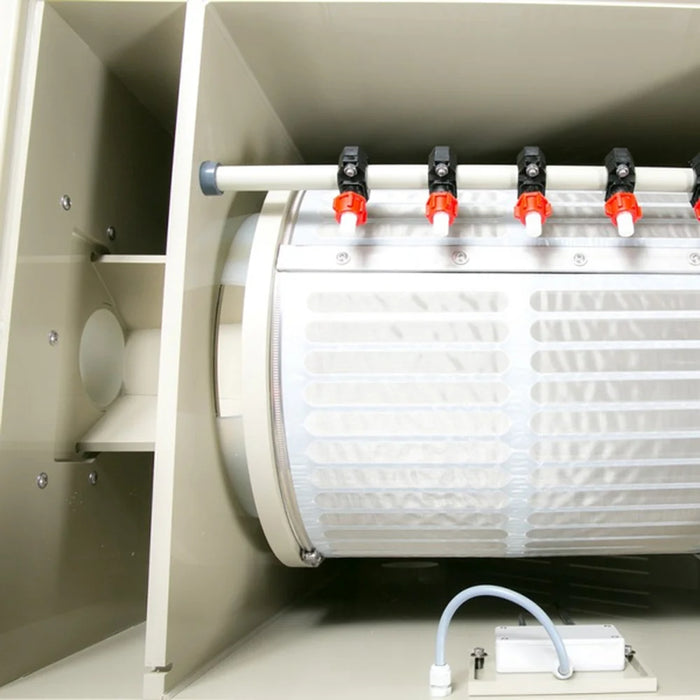

Dirty water enters the filter and passes through a rotating drum that mechanically separates debris from the water column. The screen does the heavy lifting, trapping the smallest particles most systems miss.

• Filters particles down to 75 microns
• Screen panel made from 75 micron stainless steel 316
• Drum measures 40 x 50 cm, built from 20 mm PP
• Housing constructed from tough 15 mm PP

The result is cleaner, clearer water returning to your pond continuously, without the fine muck that clouds the view and stresses your fish.

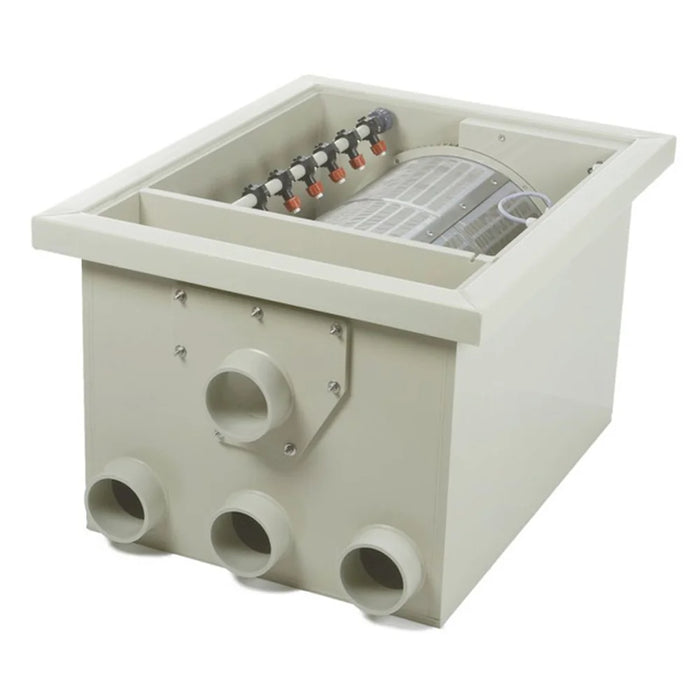

Automatic Screen Rinsing That Prevents Clogging

Here is where the magic happens. As debris builds on the screen, the filter automatically rinses it clean, so the mesh never blocks up and filtration keeps running at full strength.

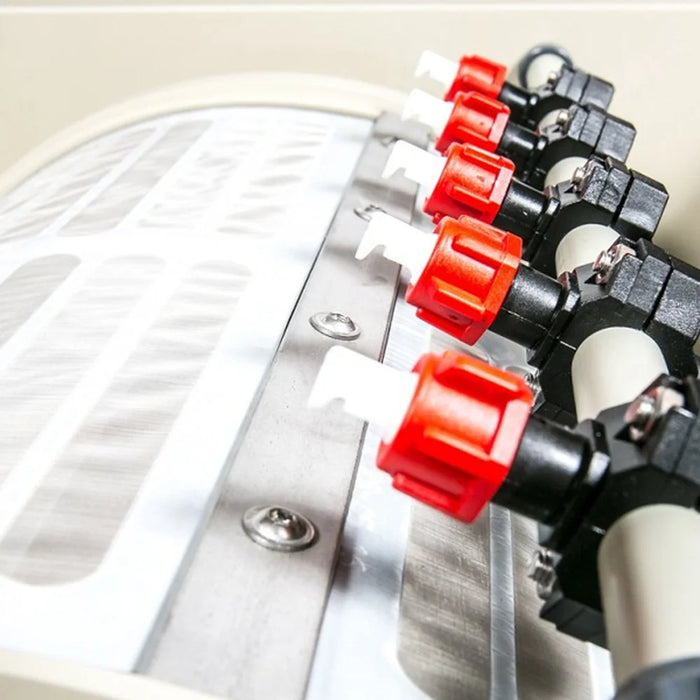

• Spray bar with removable mounting delivers the rinse, fitted with a row of red and black high pressure nozzle fittings
• High pressure PVC 40 bar cover handles the force
• Rinse level adjustable so you control when cleaning kicks in
• Turn and rinse time adjustable to match your pond's load
• Dirty rinse water flows into a removable waste water container

This continuous self-cleaning cycle is what keeps the smallest particles filtered day after day without your intervention.

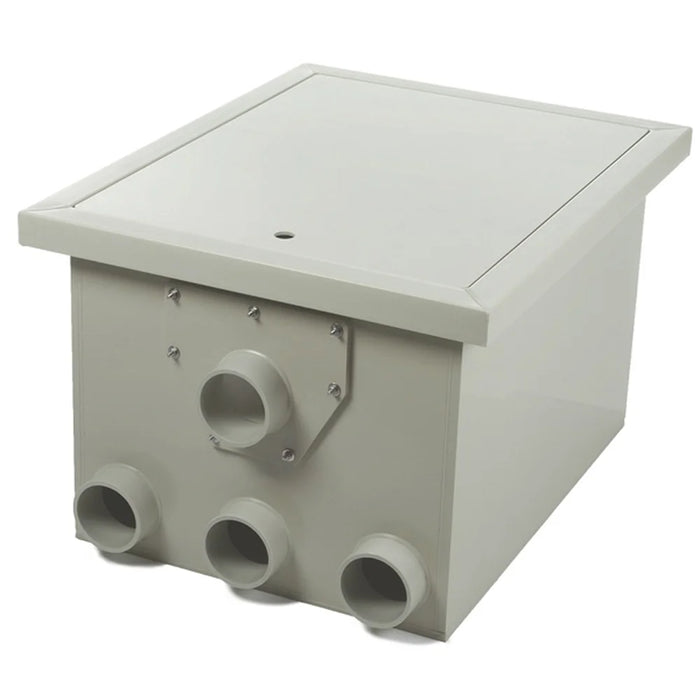

Flow and Pond Capacity of the Sea Side Aquatics PP-35 WIFI Rotary Drum Filter

Sized for serious ponds, this filter moves a lot of water. It handles up to 9,250 GPH of maximum flow and suits ponds up to 18,000 gallons.

• Runs as gravity, airlift, or pump fed to fit your setup
• Low 17 cm installation height for easier positioning
• 4 x 110 mm inputs and 2 x 110 mm outputs
• 4 extra 110 mm outputs on the side for pump fed installations
• 110 mm waste water drain

That flexibility means you can plumb it into almost any pond layout without reworking your whole system.

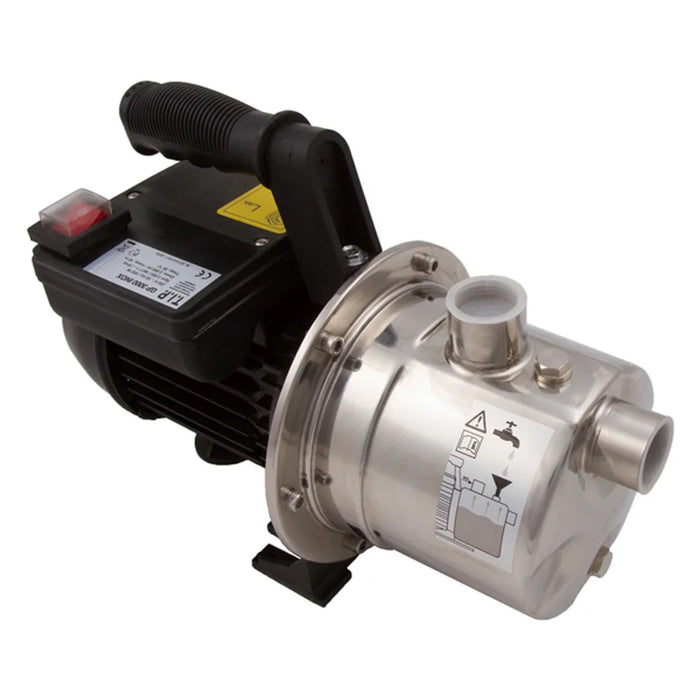

External Cleaning Pump Included

The external cleaning pump comes in the box and is required for operation, so you have everything you need to get the rinse cycle working from day one.

• Stainless steel pump body with inlet and outlet ports
• Black motor housing with a carry handle and its own red on/off switch
• Powers the high pressure spray that keeps the screen spotless

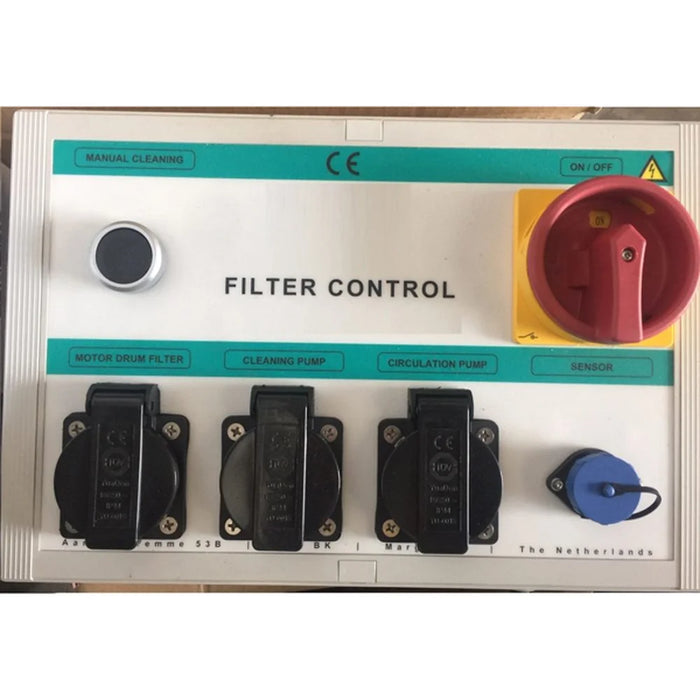

Control Box and Manual Operation on the Sea Side Aquatics PP-35 WIFI Pond Filter

All your settings live in the control box mounted right on the filter, its front panel clearly labelled FILTER CONTROL and carrying a CE marking. Adjust rinse level, tune turn and rinse timing, or trigger a clean whenever you want.

• Turn and flush manual operation at the push of a button, via a dedicated manual cleaning push button
• Red and yellow ON/OFF rotary switch and three black outlet sockets for the motor drum filter, cleaning pump, and circulation pump
• Blue sensor connector keeps the automatic cycle responsive

Built to Last With Corrosion Resistant Materials

Every component is chosen to survive constant contact with water. The stainless steel 316 and 304 parts resist corrosion, while the silicone seal keeps everything watertight for the long haul.

• PP housing and drum shrug off pond chemistry
• Stainless steel screen and hardware built for durability
• Sealed construction to prevent leaks

Product Specs

Product Attachments

Sea Side Aquatics PP-35 WIFI Quick Guide
