Sea Side Aquatics Entry M25 RDF Combi Filter with Mat Chamber

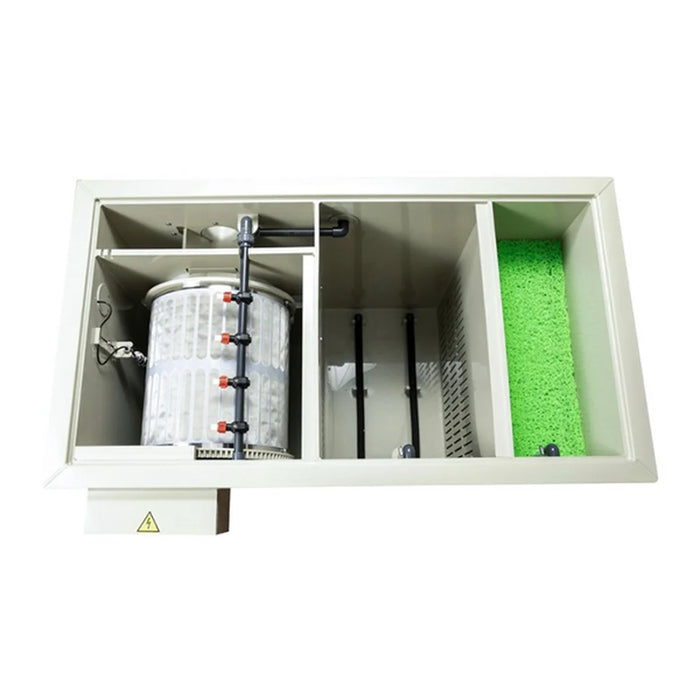

Two stages of cleaning happen inside a single housing. First, dirty water meets the drum where solids are separated out. Then the water passes into a fluidized bed of media, kept moving by air. Looking inside from the top, the layout runs left to right: the rotating drum filter on the left, the middle fluidized bed chamber with its air pipes, and the green Matala mat chamber on the right.

• Air-powered media bed adds oxygen and drives biological breakdown of waste
• Includes K1 media and the required external cleaning pump
• Bio chamber holds 90 liters of Helix
• Separate bio chamber for a green Matala Mat

The result is water that stays both visibly clear and biologically balanced, all from one compact box.

At the heart of this system sits a rotating drum filter (RDF) that captures the fine particles standard filters miss. The drum measures 38 cm x 40 cm and turns at a slow, steady pace.

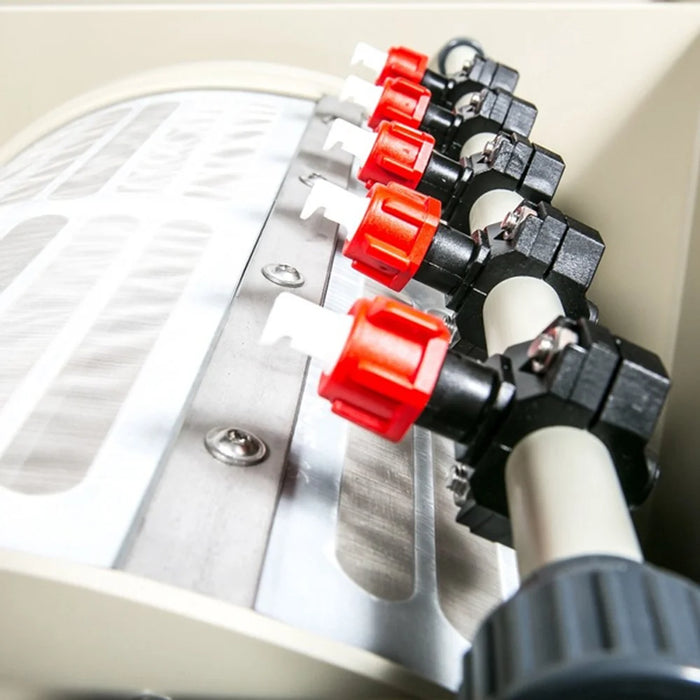

• Sieve panel in 120 micron stainless steel 316
• 40 NM drive motor running at 2.5 rpm
• Drum bypass with 2 x 90 mm connections
• Handles a max flow of 6,600 GPH

Built for both gravity and pump fed setups, so it fits into a wider range of pond layouts.

Manual filter cleaning becomes a thing of the past. The automatic rinse function flushes trapped debris out on its own, keeping the sieve clear and your maintenance minimal.

• Demountable spray bar for easy access and servicing, fitted with five adjustable red and black valves that control the rinse and flushing function
• Removable flushing channel makes cleaning straightforward
• Single 110 mm waste water outlet carries dirt away

Debris is separated and rinsed off before it ever reaches your biological media, so the whole system keeps working at its best.

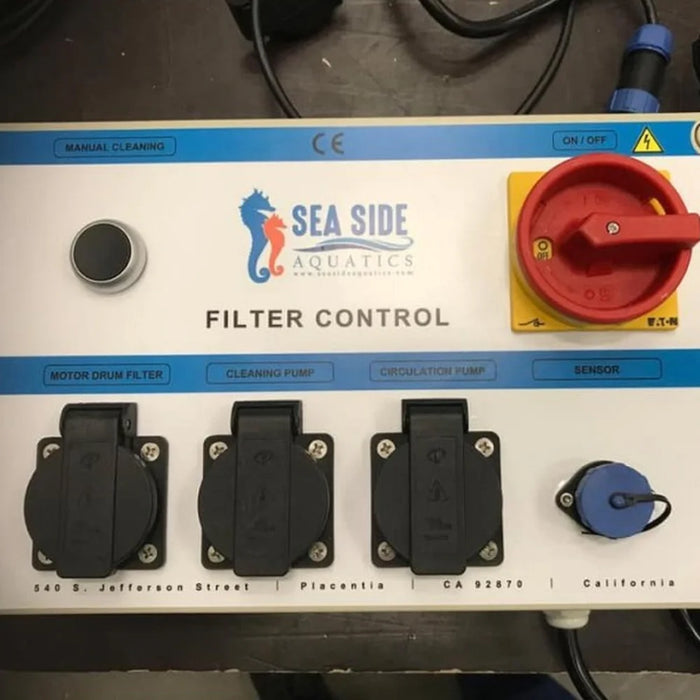

Setup stays refreshingly simple. The control box arrives plug and play with a stainless steel float that tells the system when to clean. The front carries the Sea Side Aquatics brand logo, a manual cleaning button and a red on/off switch.

• Manual turn and rinse control when you want to run a cycle yourself
• Adjustable turn and flush time to match your pond's load
• Adjustable rinse level for precise water management
• Dedicated sockets for the flushing pump, pond pump and drum drive motor
• A sensor connection for the cleaning trigger
• Standard dry run protection for the pond pump

Because every part is built in modules, worn or damaged components swap out quickly and keep downtime short.

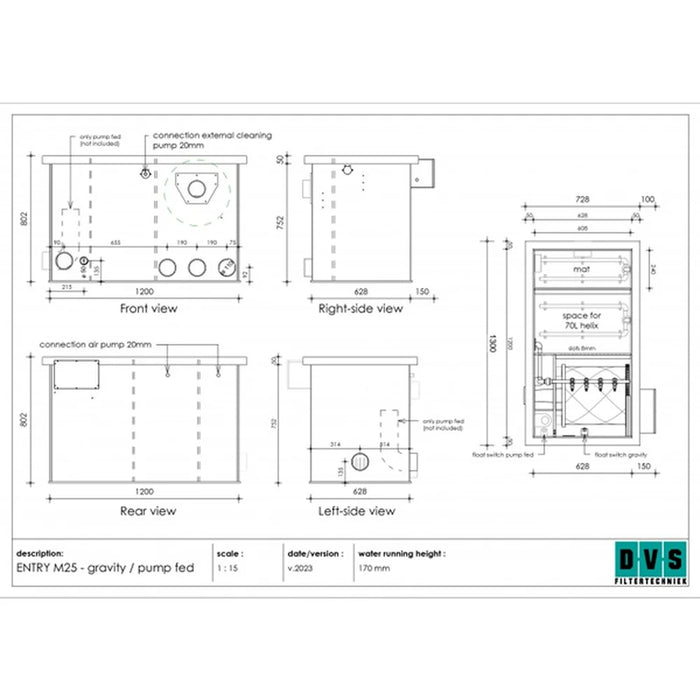

Planning your install is straightforward. The filter sits at an installation height of 16 cm above water level, so you can position it correctly the first time.

• Drum dimensions of 38 cm x 40 cm
• Front, rear, side and top views provided with measurements in millimetres in the drawing
• The drawing also labels the connection points and the water running height
• Space allocated for the Helix media within the housing
