Sea Side Aquatics Eco 22 Wifi Rotary Drum Filter 75 Micron 5800 GPH up to 11,500 gallon

Crystal Clear Water Made Simple With the Sea Side Aquatics Eco 22 Wifi Drum Filter

Tired of murky pond water and endless manual cleaning? Fine debris that slips past standard filtration clouds your water and stresses your fish. The Eco 22 tackles the problem head on, trapping particles as small as 75 microns and rinsing them away on its own. You get clearer water, healthier fish, and far less time spent scrubbing screens.

• Fine filtration: Captures particles down to 75 microns for noticeably clearer pond water.
• Self cleaning: Rotating drum with automatic rinsing keeps the screen clog free without manual scrubbing.
• Flow capacity: Handles up to 5,800 GPH, suited to ponds as large as 11,500 gallons.
• Feed flexibility: Works with gravity, airlift, or pump fed setups.
• Compact fit: Only 17 cm installation height for easier placement.
• Smart sensing: 3 probe sensors track water levels to time each rinse cycle accurately.
• Control box: On board panel labeled FILTER CONTROL with ON/OFF switch, manual cleaning button, and labeled sockets for motor, pumps, and sensor.
• Cleaning pump included: External high pressure pump comes with the unit and is required for operation.
• Durable build: PP housing and drum with stainless steel 316/304 components and a silicone seal for long term reliability.
• Plumbing options: Multiple 110 mm inputs, outputs, and a waste water drain for adaptable setup.
• Adjustable operation: Rinse level and turn/rinse timing can be tuned to your pond's needs.

How the Rotary Drum Filter Works

Dirty water flows into the filter and passes through a rotating stainless steel drum that physically separates debris from the water column. The trapped waste gets flushed away automatically, so the water leaving the unit is noticeably cleaner.

What makes this design so effective:

• Continuous automatic rinsing stops the screen from clogging
• Physical separation pulls out solids before they break down in your pond
• 75 micron filtration captures even the finest particles
• Flexible feed options: gravity, airlish, or pump fed

Handle ponds up to 11,500 gallons with a max flow of 5,800 GPH, all at a compact installation height of just 17 cm.

Micron Screen and Automatic Rinsing on the Sea Side Aquatics Eco 22 Wifi Rotary Drum Filter

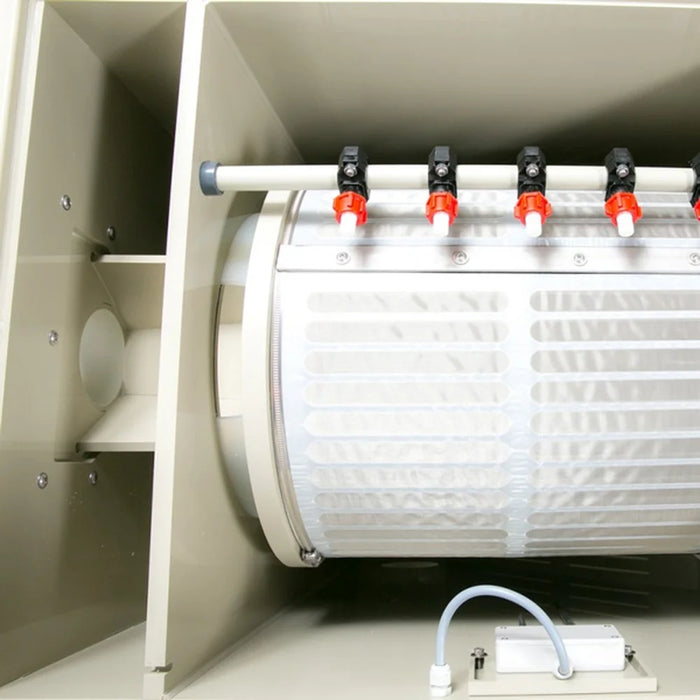

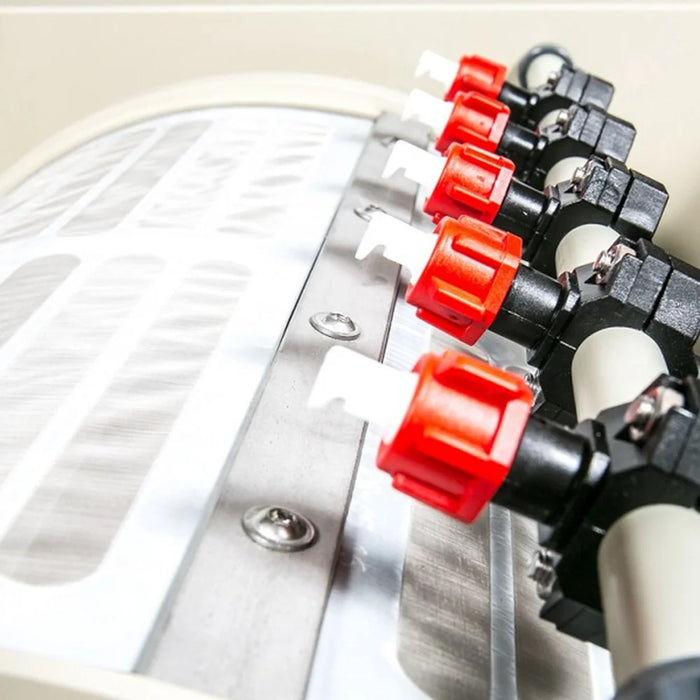

At the heart of the unit sits a 75 micron stainless steel 316 screen panel wrapped around a 40 x 40 cm drum. A spray bar mounted above hits the screen with a high pressure rinse, blasting trapped debris off the mesh and into the waste channel. Its row of red nozzle fittings and black mounting clamps sit directly above the stainless steel screen panel for even, targeted cleaning.

• High pressure PVC spray bar rated to 40 bar with removable mounting
• Adjustable rinse level so you control how much water goes to waste
• Adjustable turn and rinse timing to match your pond load
• Removable waste water container for easy disposal

Because the screen cleans itself, filtration stays consistent without you lifting a finger.

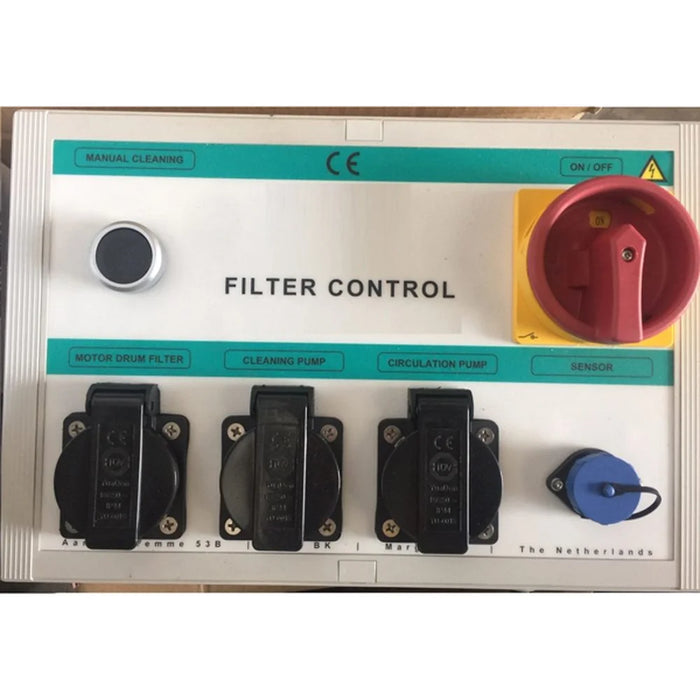

Control Box and Manual Operation on the Sea Side Aquatics Eco 22 Wifi Pond Filter

Everything you need sits on the control box mounted directly on the filter, labeled FILTER CONTROL. A red ON/OFF rotary switch powers the unit, while a dedicated manual cleaning push button lets you trigger a turn and flush cycle whenever you want.

Four labeled sockets keep wiring straightforward:

• Motor drum filter
• Cleaning pump
• Circulation pump
• Sensor connection

With 3 probe sensors, the filter reads water levels accurately to time each rinse. Manual turn and flush operation gives you full control on top of the automatic cycles.

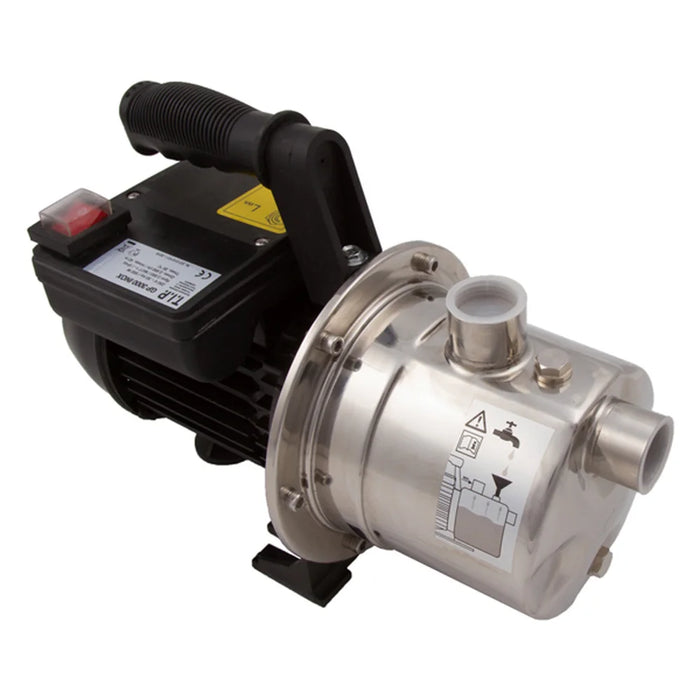

Included External Cleaning Pump With the Sea Side Aquatics Eco 22 Wifi RDF Filter

No need to source extra hardware. The external cleaning pump is included and required for operation, so your unit arrives ready to run.

• Stainless steel and black bodied high pressure design
• Carry handle for easy handling
• Red power switch for quick control
• Threaded inlet and outlet ports for a secure connection

This pump feeds the spray bar, delivering the pressure that keeps the micron screen spotless.

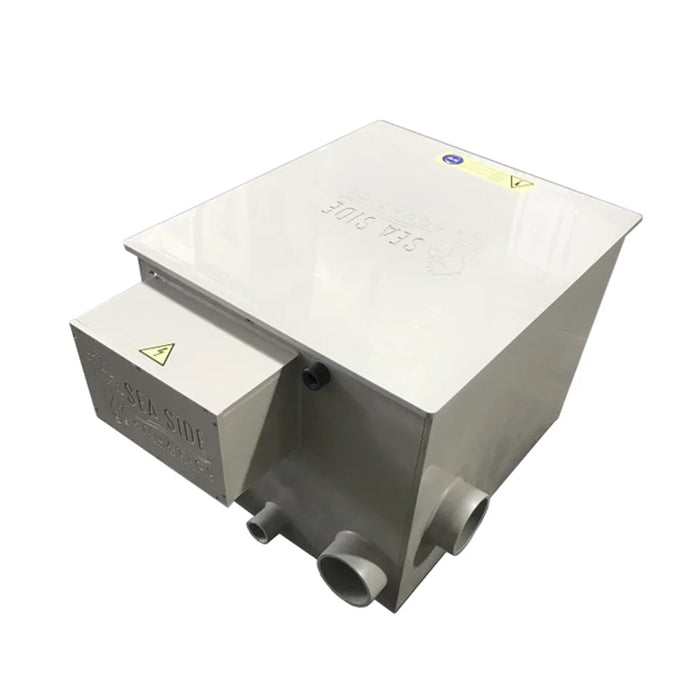

PP Housing and Stainless Steel Components Built to Last

Every part of this filter is made to handle constant water contact and continuous operation.

• PP 10 mm housing and PP 15 mm drum for rigid, corrosion resistant construction
• Stainless steel 316/304 components for strength and rust resistance
• Silicone seal for a reliable watertight fit

These materials mean the unit stands up to the demands of a hardworking pond system year after year.

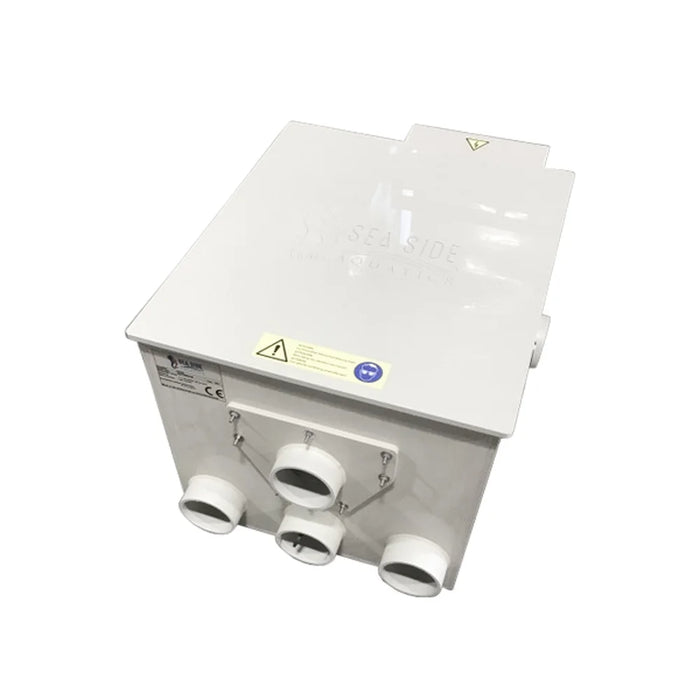

Flexible Plumbing and Connections

Setting up your system is simple with generous inlet and outlet options that adapt to different pond layouts and feed methods.

• 2 x 110 mm inputs
• 2 x 110 mm outputs, plus 2 extra 110 mm outputs for pump fed setups
• 110 mm waste water drain

This range of connections lets the filter slot into gravity, airlift, and pump fed configurations without extra adapters.

Product Specs

Product Attachments

Sea Side Aquatics Eco 22 Wifi Quick Guide
