Sea Side Aquatics ECO-20 Rotary Drum Filter 120 micron 5,800 GPH up to 11,500 Gallons

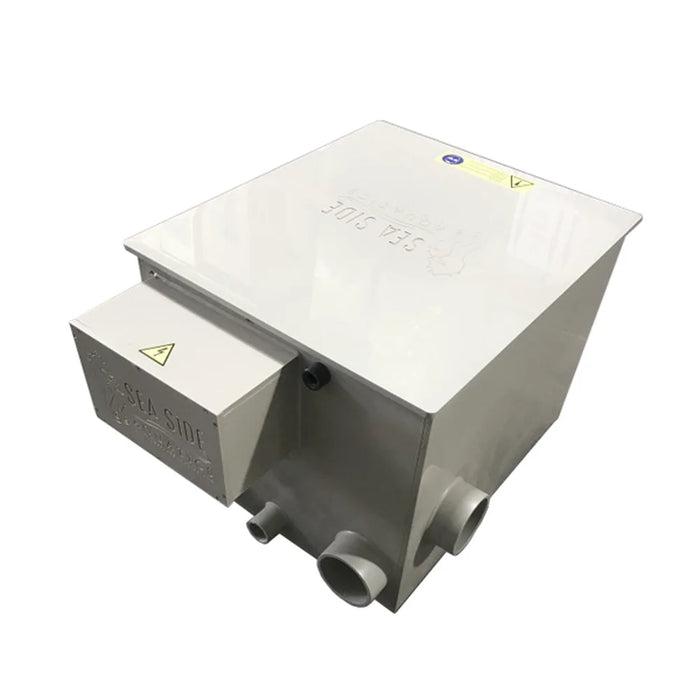

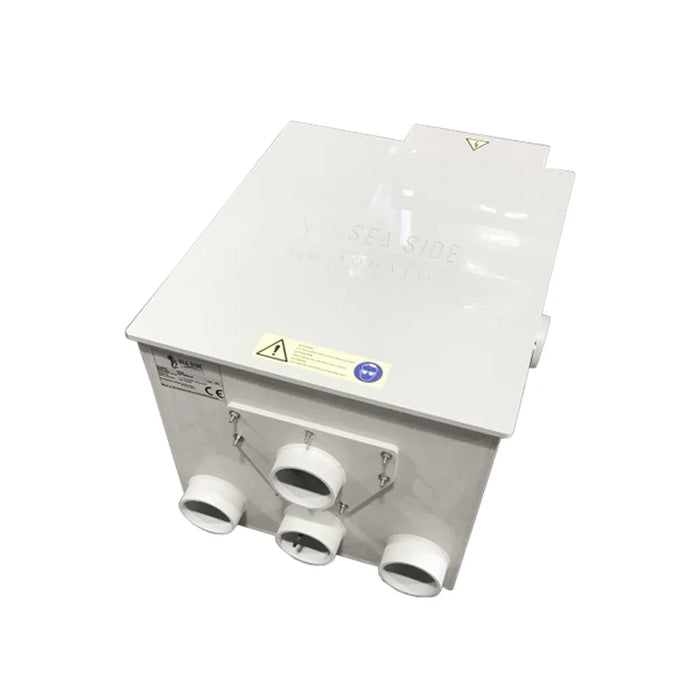

Built to handle serious water volume, this filter moves up to 5,800 GPH and keeps ponds as large as 11,500 gallons running clear. The complete unit features a branded lid with clear warning labels on the cover, and the row of 110 mm inlet and outlet ports lines up neatly across the front face. It fits into almost any setup thanks to flexible feed options:

• Gravity fed, airlift, or pump fed compatibility for your existing plumbing
• Low 17 cm installation height for easier positioning
• 3 x 110 mm inputs and 2 x 110 mm outputs, plus 2 extra 110 mm outputs when running pump fed
• 110 mm waste water drain for simple discharge routing

The tough housing uses 10 mm PP construction with a 15 mm PP drum, backed by stainless steel 316/304 hardware and a silicone seal for a long service life.

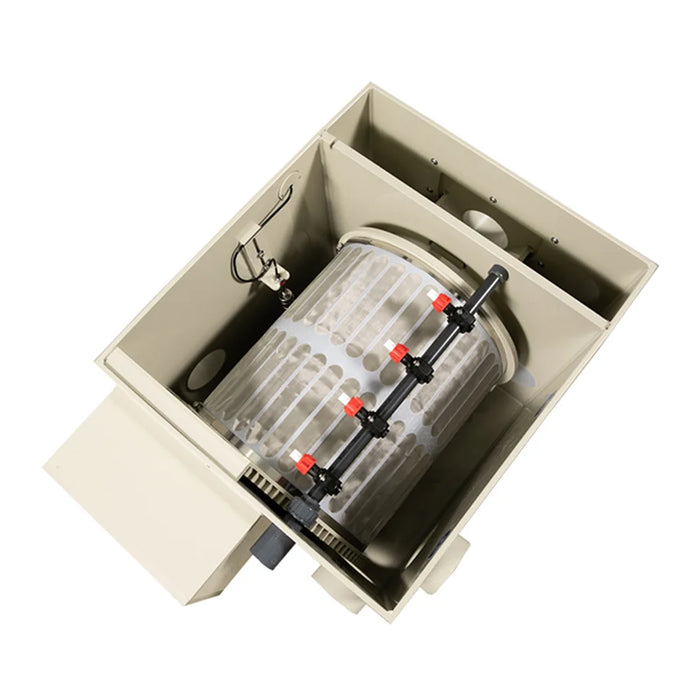

The heart of this system is a 38 x 40 cm rotating drum that does the heavy lifting automatically. Water passes through the drum, debris collects on the screen, and the mechanism rinses it clear before buildup can ever block the flow. Inside the beige housing, the horizontal drum sits alongside a black spray bar fitted with red-capped nozzles running along its length.

• 40 NM drive motor spinning at a steady 2.5 rpm keeps the drum turning smoothly
• Continuous automatic rinsing prevents clogging, even on the finest particles
• Removable waste water container makes disposing of collected debris quick and clean

The result is filtration that keeps performing without you standing over it.

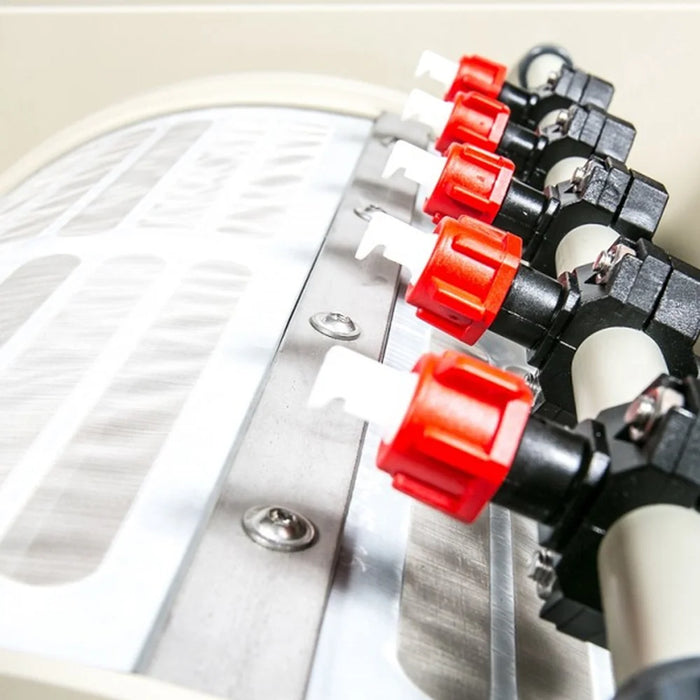

The screen is where the fine work happens. A 120 micron stainless steel 316 panel captures particles most filters miss, while a dedicated spray bar keeps that screen spotless. Along the spray bar, a row of red screw caps sits above white nozzles that direct the rinse straight onto the perforated screen surface.

• Spray bar with removable mounting for straightforward maintenance and inspection
• High pressure PVC 40 bar cover built to withstand the cleaning cycle
• External cleaning pump included and required to power the rinse spray

Together the screen and spray bar deliver clean water and stay clean themselves.

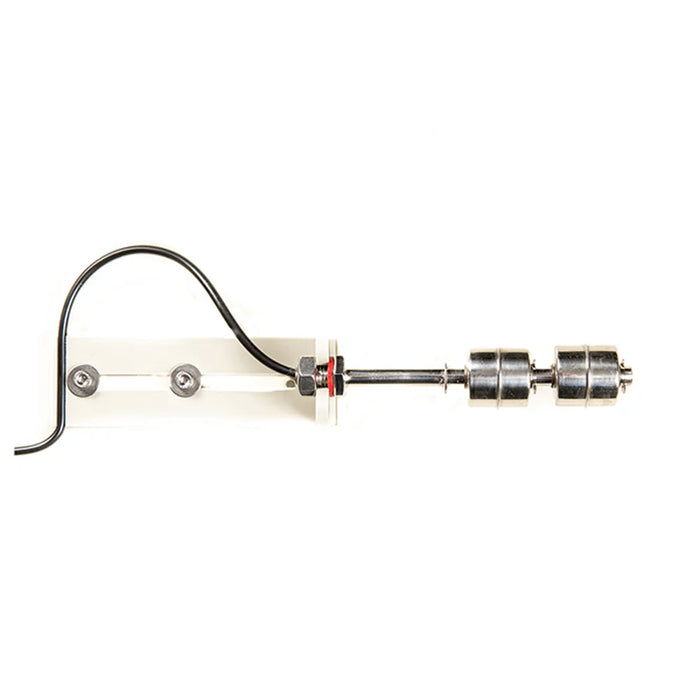

A float valve sensor keeps an eye on your water level so the filter always operates in the right range. Mounted on its own bracket with two floats on a stainless rod and a black cable curving from the mounting plate, it responds to changing conditions without any input from you.

This automatic monitoring protects your filtration cycle and helps maintain consistent flow through the drum.
