Sea Side Aquatics C35M RDF Filter with Moving Bed and Mat 9,250 GPH 22,000 Gallon

Cleaner Ponds Made Easy With the Sea Side Aquatics C35M Pond Filter

Tired of murky water and hours spent scrubbing filter media? Your pond deserves better. This all-in-one unit pulls debris down to 75 microns, rinses itself automatically, and biologically polishes your water in one continuous cycle. You get clear, oxygenated water without the constant hands-on maintenance, so you can actually enjoy your fish instead of fighting your filtration.

• Filtration Power: Captures debris down to 75 microns with a patented woven stainless steel mesh, then self-flushes automatically.
• Low Maintenance: Plug and play sensor triggers automatic cleaning cycles so you rarely need to step in.
• Biological Stage: Air-driven moving bed holds 200 liter helix plus a 300 litre mat chamber for healthy, oxygenated water.
• Capacity: Handles up to 9,250 GPH and ponds as large as 22,000 gal.
• Feed Flexibility: Works gravity fed, airlift fed, or pump fed to match your setup (pump version runs at 30% less capacity).
• Control Panel: Manual run/wash, adjustable cleaning time and level, 3 plugs for full command over motor, cleaning pump, and pond pump.
• Built-In Protection: Standard dry run protection keeps your pond pump safe.
• Durable Build: CNC machine cut PP housing and drum with RVS 316/304 stainless parts and a UV resistant seal.
• Easy Servicing: Modular components swap out quickly, and a lid comes included to block debris and light.

Rotating Drum Filtration and Mesh

Dirty water enters the unit and passes straight into the rotating drum filter, where a patented woven 75/120 micron stainless steel mesh captures solids before they ever reach your biological media. Once particles build up, the drum spins and the system flushes them out on its own.

• Drum diameter of 40 cm x 50 cm for high solids-handling surface area

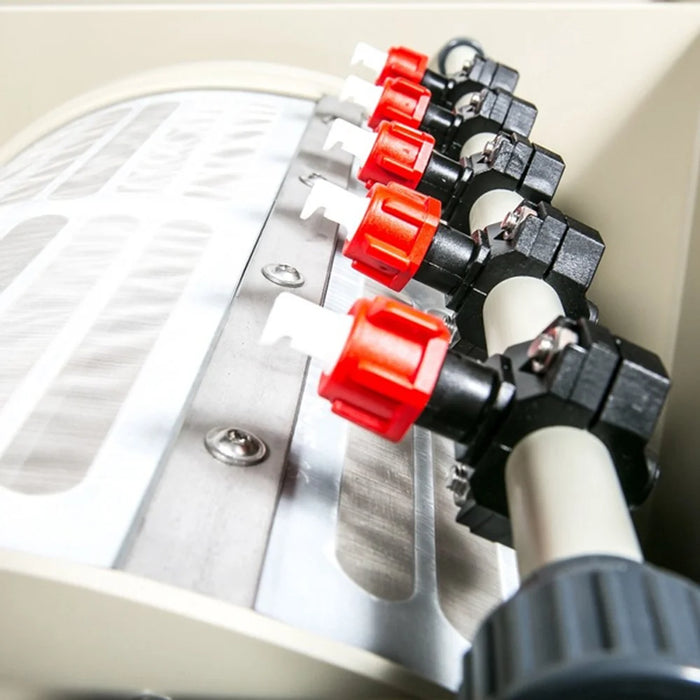

• Removable spraybar for quick access and simple cleaning, fitted with a row of red and white quick-release nozzle fittings
• Driven by a 50 NM engine at 4 RPM for steady, controlled rotation
• Installed cleaning pump running at 5 Bar to blast debris off the mesh
• 1 x 110 mm waste outlet plus a removable waste water gutter, with waste cleaning available as an option

Two 90 mm drum bypass ports keep water moving even during heavy loads, so your pond never goes short on flow.

Biological Polishing With the Sea Side Aquatics C35M Moving Bed Filter

After the mechanical stage, water flows into a fluidized bed of media that keeps helix constantly tumbling. Powered by air, this stage adds oxygen while feeding the beneficial bacteria that break down dissolved waste.

• Moving bed capacity for 200 liter helix
• Separate mat chamber holding 300 litres for extra filtration surface
• 2 built-in air discs of 35 cm drive the fluidized action and oxygenate the water

The result is water that stays healthy for your fish and stable for your whole ecosystem.

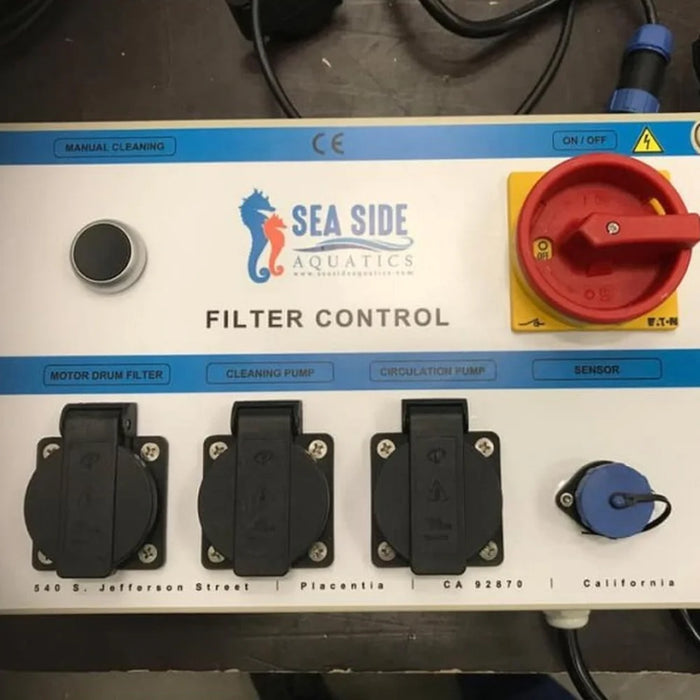

Automatic Control Panel and Operation

Set it up and let it run. The plug and play sensor triggers automatic cleaning the moment it detects buildup, so you never have to guess when maintenance is due.

• Manual run/wash option when you want direct control, with a dedicated manual cleaning button and a red on/off rotary switch right on the panel
• Adjustable cleaning time for turn and flushing cycles
• Adjustable cleaning level to match your pond load
• 3 plugs giving you command over the drum filter motor, cleaning pump, and pond pump, plus a separate sensor socket
• Standard dry run protection that guards your pond pump

Flexible Feeding Options for the Sea Side Aquatics C35M Rotary Drum Filter

Every pond setup is different, so this unit adapts to yours. Run it gravity fed, airlift fed, or pump fed depending on your layout and existing plumbing.

• Handles a max flow of 9,250 GPH and pond sizes up to 22,000 gal
• Pump version runs at 30% less capacity
• Water running height of 12 cm

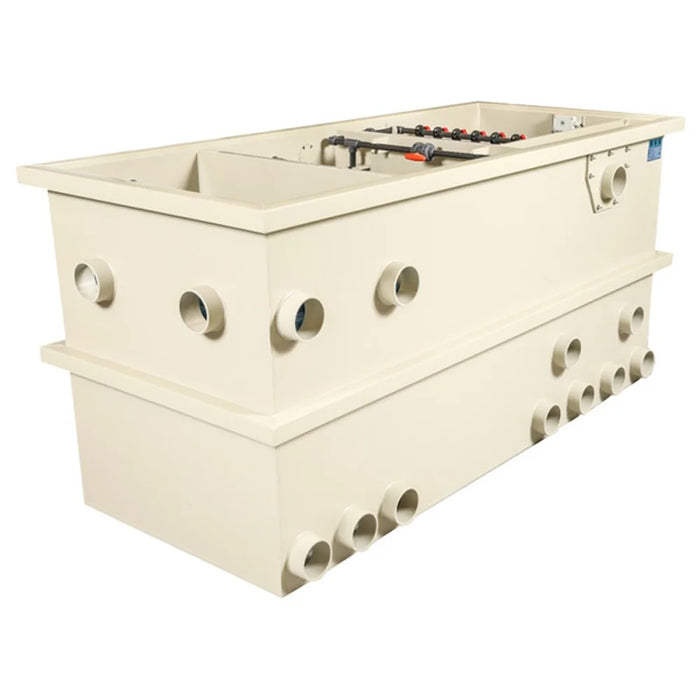

• Standard inputs and outputs per the drawing, with changes to inputs and outputs possible

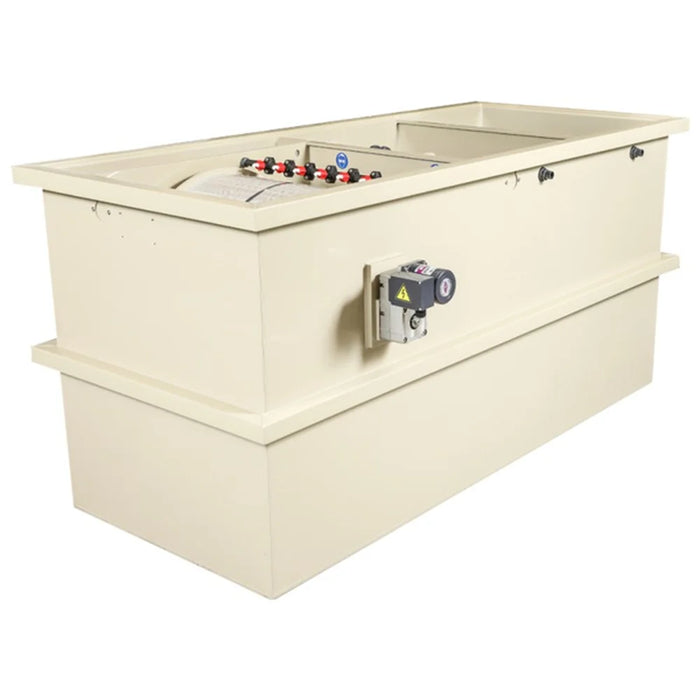

Built to Last With the Sea Side Aquatics C35M Combi + RDF

This unit is machined to hold up outdoors year after year. The precise CNC machine cut PP construction gives you a rigid, corrosion-free body that shrugs off pond conditions.

• Housing in PP 10/15 mm and drum in PP 15 mm
• RVS 316/304 stainless components with UV resistant seal
• Modular components that swap out quickly for easy servicing
• Supplied with a lid to keep debris and light out

Product Specs

Product Attachments

Sea Side Aquatics Technical drawing (dimensional/engineering drawing)
