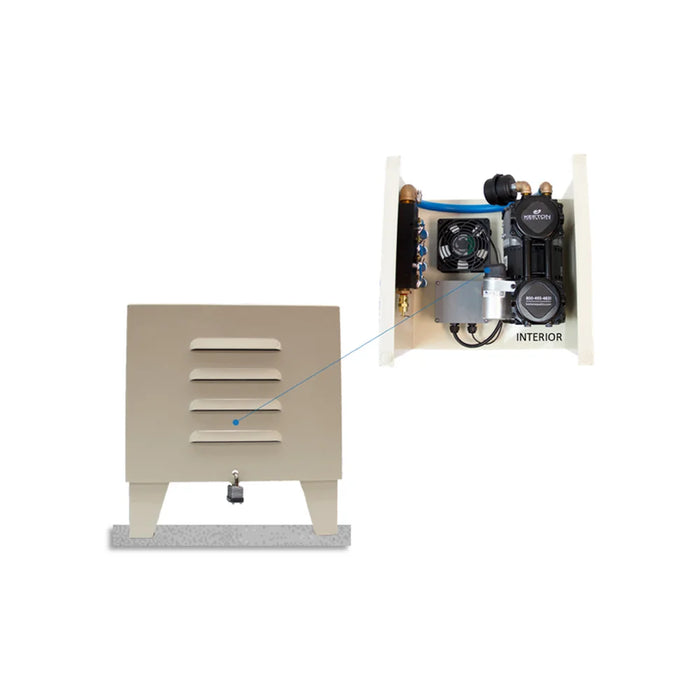

Tan ProLake ProLake Mini Aeration System cabinet with interior view showing compressor, cooling fan and manifold

ProLake Mini Aeration Kit Whisper Quiet 1/2 HP

SKU PL-MINI1KIT
$0.00 - $0.00
$0.00
$1,720.14
$1,720.14 - $2,717.86
$1,720.14
Summer Sale - Save $50 on all Kasco and Scott Aerator products over $500
FREE SHIPPING: Estimated Delivery Between July 12 and July 16

Found it for the same price or less?

Contact us and we'll beat it.
Guaranteed!

855-964-4205
support@majestypond.com
Instant Live Chat
  • Installation Assistance Available
  • Authorized Dealer
  • Easy 30-Day Returns
  • Manufacturer Warranty Included
  • Questions? Chat with us! >>

Clean, Clear Water With the ProLake Mini Aeration System

Struggling with murky, stagnant water and unwanted algae in your pond? Your water needs oxygen reaching every layer, not just the surface. This ½ horsepower aeration setup pushes up to 5.3 cubic feet of air per minute down to your diffusers, keeping ponds and small lakes from 1,000 gallons up to a full acre fresh and problem free. Choose the kit that matches your water size and let it run whisper quiet in its compact, hidden cabinet.

Variant comparison

SKU

PL-MINI1KIT

PL-MINI2KIT

PL-MINI3KIT

PL-MINI4KIT
Capacity & Diffusers Up to 80,000 gal · 1 diffuser 80,000–160,000 gal · 2 diffusers 160,000–240,000 gal · 3 diffusers 240,000–1 acre · 4 diffusers
Airline Length 100 ft 3/8" weighted airline 200 ft 3/8" weighted airline 300 ft 3/8" weighted airline 400 ft 3/8" weighted airline
Price $1,720.14 $2,071.38 $2,422.62 $2,717.86
  • Coverage Range: Kits handle ponds and lakes from 1,000 gallons up to a full acre, with the right size chosen by matching gallons to configuration.
  • Airflow Power: ½ horsepower compressor pushes up to 5.3 CFM down to non-clogging, self-cleaning Duraplate diffusers.
  • Full Water Column Oxygenation: Diffusers rated to 50 feet deep circulate oxygen from bottom to top, not just the surface.
  • Kit Contents: Includes cabinet, diffusers, matching Alpine 3/8" weighted airline, and one Level-Aer equipment pad, with diffuser count and airline length varying by configuration.
  • Compact Cabinet: Rugged, rust-proof powder-coated housing measures 14"W x 14"L x 16"T for easy concealment.
  • Quiet Operation: Runs at just 50/60 decibels, barely noticeable near your shoreline or yard.
  • Adjustable Manifold: Brushed aluminum 1 to 4 port manifold with pressure gauge for fine-tuned control.
  • Power Draw: Operates on 115V (230V by special request), drawing only 4.3 AMPS at 655 Watts for efficient round-the-clock use.
  • Versatile Applications: Suited for residential ponds, retention ponds, swim ponds, farm ponds, water gardens, koi ponds, aquaculture displays, and HOA features.

Oxygen That Reaches the Entire Water Column

ProLake ProLake Mini Pond Aeration System diagram showing compressor, CFM airflow and diffuser depth specs

Surface splashing alone won't fix a troubled pond. This system drives air deep, so oxygen circulates from the bottom up and keeps your water balanced through every season.

  • ½ horsepower EcoFlow™ 24V compressor delivering up to 5.3 Max CFM, backed by a 2-year warranty

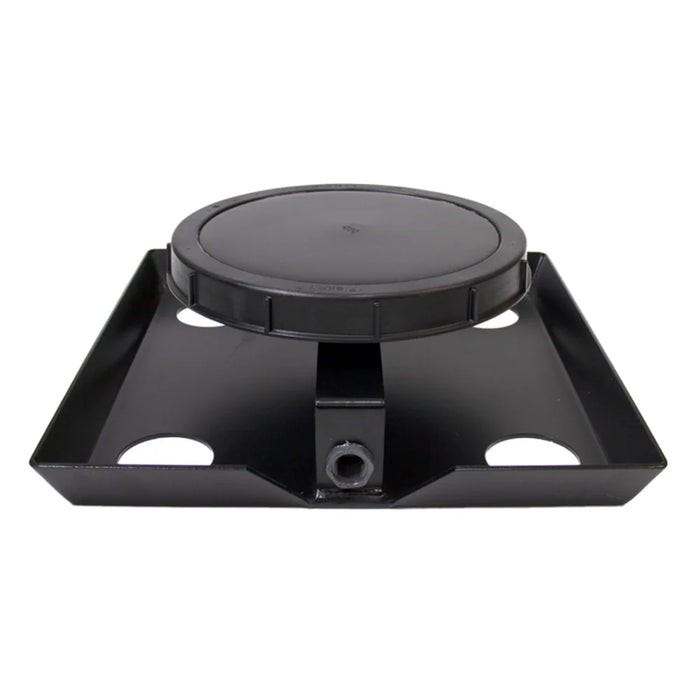

  • Non-clogging, self-cleaning Duraplate diffusers that stay efficient over time, covered by a lifetime warranty
  • Diffusers rated for depths up to 50 feet
  • Oxygenates the full water column, not just the top layer

The result is cleaner, clearer water that stays healthy for years without constant intervention.

Pick the Right ProLake Mini Pond Aerator for Your Water

ProLake ProLake Mini Pond Aerator comparison of four kit sizes by gallon capacity, diffusers and airline length

Four configurations cover everything from a large water garden to a one-acre lake. Match the kit to your water volume:

  • Mini 1 Kit: up to 80,000 gallons, 1 diffuser, 100 ft of 3/8" weighted airline
  • Mini 2 Kit: 80,000 to 160,000 gallons, 2 diffusers, 200 ft of 3/8" weighted airline
  • Mini 3 Kit: 160,000 to 240,000 gallons, 3 diffusers, 300 ft of 3/8" weighted airline
  • Mini 4 Kit: 240,000 gallons up to 1 acre, 4 diffusers, 400 ft of 3/8" weighted airline

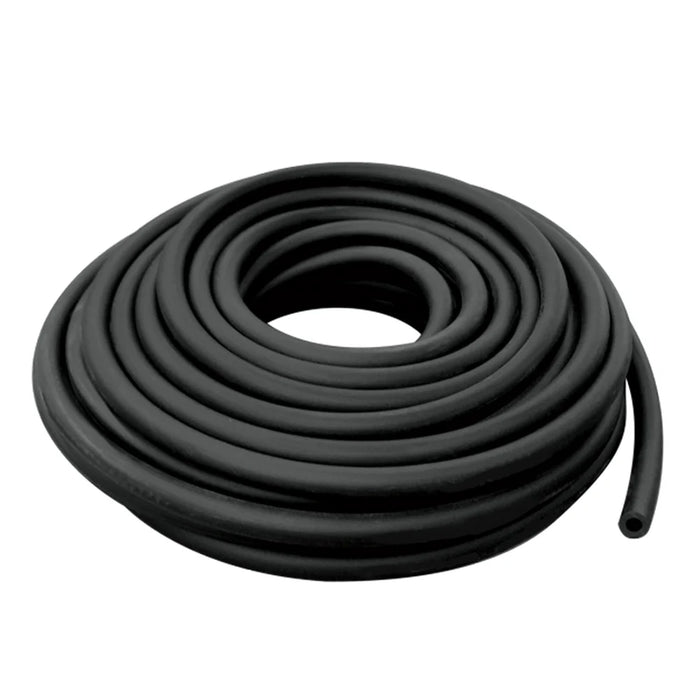

Every kit ships complete with a cabinet, its diffusers, the matching Alpine 3/8" weighted airline, and one Level-Aer equipment pad. The Alpine 3/8" weighted airline is covered by a lifetime warranty.

Small, Quiet, and Easy to Hide With the ProLake Mini Aeration Kit

ProLake ProLake Mini Pond Aeration System icons showing compact cabinet size, quiet 50/60 DB and cooling fan

The best of the Mini shows in its engineering. At just 14"W x 14"L x 16"T, the cabinet tucks away easily near your shoreline or in the yard. It runs at only 50/60 decibels, so you won't notice it running no matter where it sits.

  • Rugged, rust-proof powder-coated cabinet backed by a 2-year cabinet warranty
  • High volume cooling fan to keep the compressor running cool
  • Fully adjustable brushed aluminum 1 to 4 port manifold with pressure gauge
  • Compact footprint that stays discreet

Any Body of Water Benefits From the ProLake Mini Lake Aeration Kit

ProLake ProLake Mini Pond Aerator application icons for ponds, koi, swim ponds, aquaculture and HOA water

This system works across a wide set of applications, keeping water healthy wherever oxygen matters:

  • Residential recreational ponds and lakes
  • Small retention ponds and farm ponds
  • Swim ponds and large water gardens
  • Koi ponds and aquaculture features
  • Zoological displays and HOA water features

Energy Efficient Performance From the ProLake Mini Pond Aeration System

ProLake ProLake Mini Aeration Kit energy specs showing 115V power, 4.3 amps, 655 watts and equipment pad size

Running an aerator around the clock shouldn't spike your power bill. This setup is tuned to move plenty of air while drawing modest electricity.

  • Operates on 115V power (230V available by special request)
  • Draws just 4.3 AMPS at 655 Watts

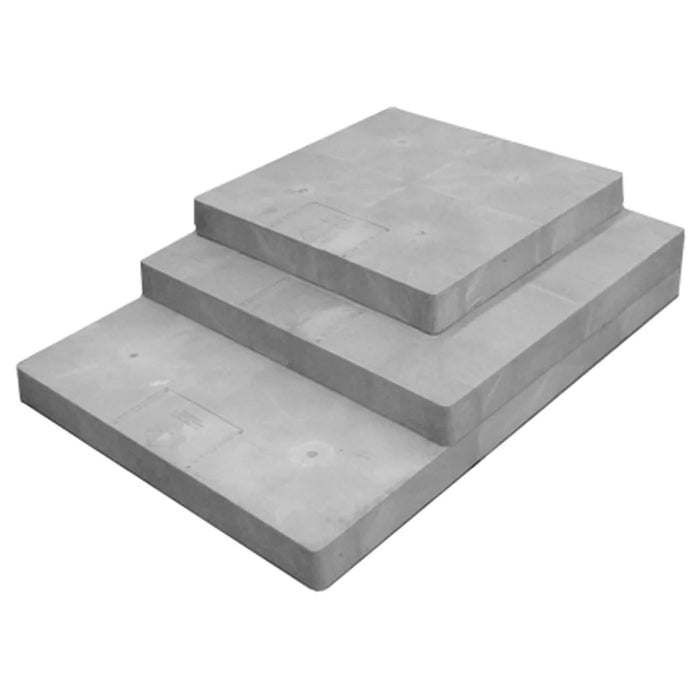

  • Level-Aer equipment pad measuring 24" x 24" x 3" for stable, quiet placement

You get steady, dependable aeration that keeps working season after season, backed by a 2-year complete product warranty.

Product Specs

ProLake ProLake Mini Aeration Kit key spec cards for CFM, compressor, diffuser depth, airline and cabinet size

Spec Value
Item Numbers PL-MINI1KIT, PL-MINI2KIT, PL-MINI3KIT, PL-MINI4KIT
Maximum Pond Size 1,000 gal. up to 1 acre (by kit)
Compressor ½ horsepower EcoFlow™ 24V, 115V or 230V
Diffusers 1 to 4 Duraplate diffusers (by kit)
Maximum Diffuser Depth 50 Feet
Max CFM Up to 5.3
AMPS 4.3
Watts 655
Airline Alpine 3/8" OD weighted airline, 100 to 400 ft roll (by kit)
Manifold 1 to 4 Port with pressure gauge
Cooling Fan 1
Level-Aer Equipment Pad 24" x 24" x 3"
Operational Sound 50/60 DB
Cabinet Dimensions 14"W x 14"L x 16"T
Complete Product Warranty 2 Years
EcoFlow™ 24V Compressor Warranty 2 Years
Cabinet Warranty 2 Years
Alpine 3/8" Weighted Airline Warranty Lifetime
Duraplate Diffuser Warranty Lifetime
