ProLake 3.9 Aeration System 9 Acre Electric with Timer

Keep Your Pond Clean and Clear With the ProLake 3.9 Aerator System

Tired of watching your pond turn murky, smelly, and choked with sludge? Stagnant water invites unwanted bacteria and scum build-up that harm your fish and make your water look neglected. This aeration setup pushes oxygen through every layer of the water column, keeping ponds and lakes up to 9 acres healthy, clear, and problem-free all year long. Pick the voltage that fits your site, add the diffusers you need, and let it run day and night.

Variant comparison

• Pond size: Aerates ponds and lakes up to 9 acres, oxygenating the entire water column.
• Compressor power: Three ½ HP compressors push up to 15.9 cubic feet of air per minute to the diffusers.
• Diffuser options: Order the cabinet alone or as a full system with 9 Duraplate™ diffusers, depending on your setup.
• Diffuser build: Non-clogging, self-cleaning, and rated to withstand 500+ lbs, with shrouded parts that keep out debris and predators.
• Voltage: Offered in 115V or 230V to match your power source.
• Programmable timer: UL Listed timer with seven-day, 24-hour scheduling, power outage back-up, manual override, and a locking hasp.
• Continuous operation: Built for 24/7 use, day and night, in any weather.
• Quiet performance: Sound-deadening cabinet foam keeps operation at 50/60 DB.
• Flexible installation: Cabinet can be placed up to 4,000 feet from the water, connected by ½ inch PVC line to a remote manifold.
• Where it works: Suited for HOA ponds, golf courses, farms, retention ponds, aquaculture ponds, and more.
• Fish and water health: Oxygen-rich water fights stagnation, odor, sludge, and bacteria build-up, helping fish and aquatic life live longer and healthier.

Triple Compressor Power Drives the ProLake 3.9 Electric Aeration System

Three custom-built ½ horsepower compressors work together to move air where your water needs it most. Each compressor delivers 5.3 cubic feet of air per minute, and combined they push up to 15.9 cubic feet of air per minute down to your diffusers, driving oxygen through the entire depth of your pond. These systems are designed to clean and clear ponds and lakes measuring up to 12 surface acres.

• Three ½ HP compressors built for continuous duty
• 5.3 CFM per compressor, up to 15.9 Max CFM of air delivery combined
• Diffuser depth up to 50 feet for deeper ponds and lakes
• Designed for 24/7 operation, even on cloudy days

Choose 115V or 230V compressors to match the power available at your location.

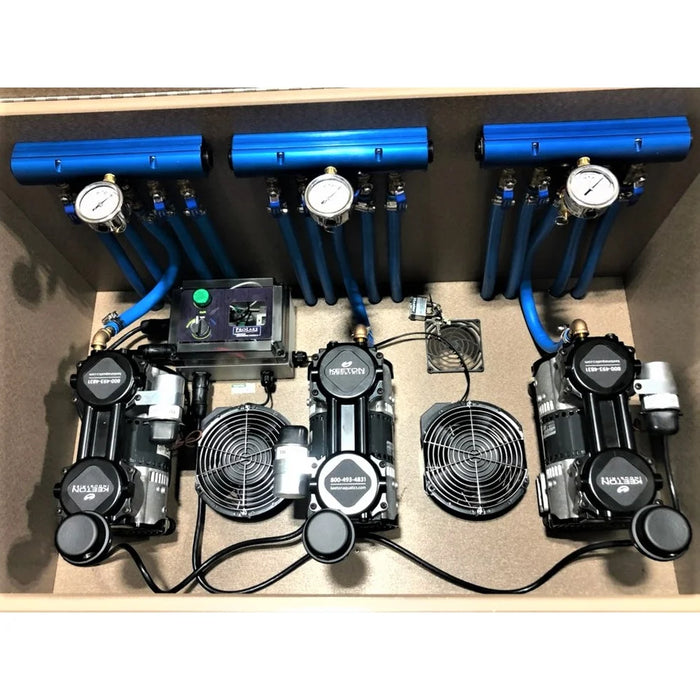

Inside the ProLake Cabinet

Open the cabinet and you will find everything working in harmony inside a durable, sound-deadening housing. ProLake packs the interior with the components that make this system run cool and quiet.

• Three custom-built compressors instead of mass-produced units
• High-volume cooling fan to keep temperatures down during long runs
• Fully adjustable, brushed aluminum manifold with a 3 to 4 port layout for easy expansion
• Pressure gauge so you can monitor performance at a glance
• 1 inch ASTM certified acoustical sound-deadening foam keeping operation at a quiet 50/60 DB

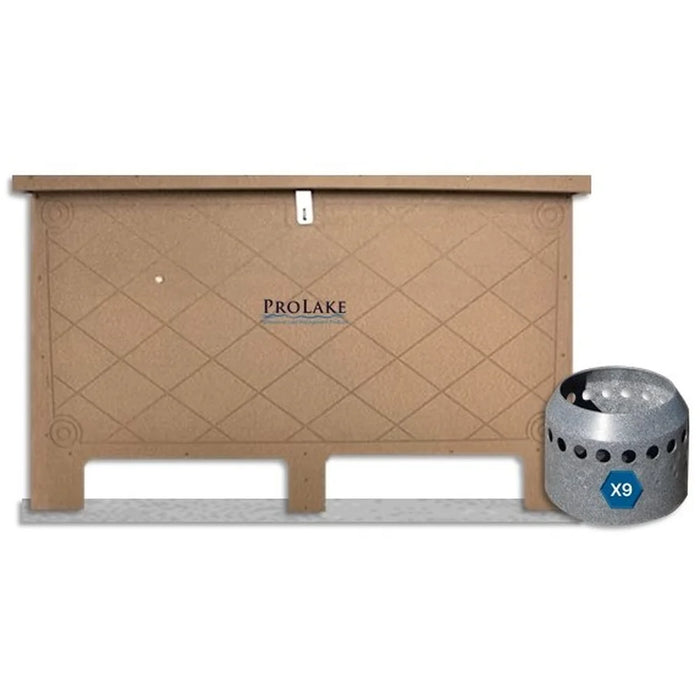

The ¾ inch thick cabinet measures 40"W x 24"L x 24"T and protects every part from the elements.

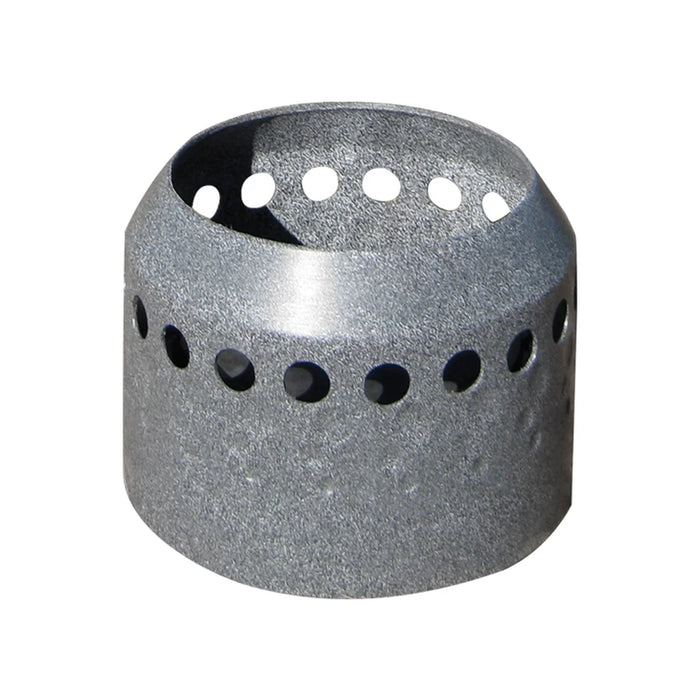

Non-Clogging Duraplate Diffusers on the ProLake3 3.9 Electric Aerator System

The diffusers are where the oxygen meets your water, and these are built tough. Each Duraplate™ diffuser is non-clogging and self-cleaning, so you spend less time on maintenance and more time enjoying a clear pond.

• Rugged enough to withstand 500+ lbs of pressure
• Shrouded and protected parts that keep out debris and predators
• Self-cleaning design that resists clogging over time

Diffuser options: Cabinet Only versions ship with no diffusers, while the full systems include 9 Duraplate™ diffusers ready to install.

Flexible Installation With the ProLake Electric Lake Aeration System

Your electrical hook-up does not have to sit right at the water's edge. This setup lets you place the cabinet where power is convenient and still reach the water.

• Install the cabinet up to 4,000 feet away from the pond
• Run a ½ inch PVC line from the cabinet to a remote manifold
• From the remote manifold, airlines run out to the Duraplate™ diffusers

A suggested Level-Aer™ Equipment Pad (30" x 30" x 3", not included) gives the cabinet a stable base, and Alpine™ ½" weighted airline (1/2" ID x 1" OD, not included) carries air down to the diffusers.

An Eco-Friendly Choice for the ProLake 3.9 Electric Pond Aerator

Electric aeration is a completely green way to care for your water. It requires very little maintenance and runs quietly day and night, so your fish and aquatic life live longer and healthier. Oxygen-rich water fights back against the stagnation that causes odor, sludge, and fish kills. This system fits a wide range of settings:

• HOA ponds and retention ponds
• Golf courses and ski parks
• Recreational and farm ponds
• Industrial retention ponds
• Aquaculture ponds and zoological displays

Take Control With the Timer on the ProLake3 Electric Aeration Unit

Want to run your aeration exactly when it suits you? The UL Listed programmable timer puts you in charge of when your water gets oxygenated. This is the only aeration system on the market that comes with a timer. Note that the programmable timer is not included with this system.

• Seven-day, 24-hour control for precise scheduling
• Power outage back-up and permanent schedule retention
• Manual override whenever you need it
• Locking hasp to keep settings secure

Product Specs

Product Attachments

ProLake 3.9 Aeration System Spec Sheet
