ProLake 2.7 Electric Aeration System 7 Acre

Keep Your Pond Clean and Clear With the ProLake Electric Pond Aerator System

Tired of murky water, foul odors, and stagnant conditions turning your pond into an eyesore? Your fish and aquatic life need oxygen to survive, and standing water quickly becomes a breeding ground for unwanted bacteria and scum. This system pushes life-giving air straight down to the bottom, oxygenating your entire water column and treating water up to 7 surface acres (rated by the supplier for up to 8 surface acres in some documentation). The result is a healthier, cleaner body of water you can actually enjoy looking at, year after year.

Variant comparison

• Coverage: Aerates ponds and lakes up to 7 surface acres, oxygenating the entire water column.
• Twin Compressors: Two custom-built 1/2 HP compressors deliver up to 10.6 CFM of air to a diffuser depth of 50 feet.
• Water Quality: Improves clarity, reduces stagnant water, and cuts down on bacteria and scum buildup for healthier fish and aquatic life.
• Programmable Timer: UL Listed timer with seven-day, 24-hour control, power outage backup, manual override, and permanent schedule retention.
• Durable Cabinet: 3/4 inch thick housing with sound-deadening acoustical foam keeps operational sound to a quiet 50/60 DB.
• Manifold Design: Adjustable brushed aluminum manifold with 2 to 4 ports for easy future expansion.
• Flexible Installation: Cabinet can be placed up to 4,000 feet from the water using a 1/2 inch PVC line to a remote manifold.
• Configuration Options: Available as cabinet only or as a complete package with 7 Duraplate diffusers included.
• Diffuser Build: Non-clogging, self-cleaning Duraplate diffusers withstand 500+ lbs and stay shrouded from debris and predators.
• Power Options: Choose 115V or 230V to match your electrical service, with the same oxygenating performance either way.
• Energy Use: 115V compressors draw 8.6 amps and 655 watts, keeping operation energy efficient.
• Eco-Friendly Operation: Runs day and night with very little maintenance, offering a green way to keep your pond healthy.
• Versatile Applications: Ideal for HOAs, golf courses, farm ponds, retention ponds, aquaculture ponds, ski parks, and zoological displays.

Powerful Twin Compressors That Oxygenate the Entire Water Column

At the heart of this system sit two custom-built 1/2 HP compressors, engineered to push air deep into your pond where it matters most. Each 1/2 HP compressor delivers 5.3 cubic feet of air per minute, and together they deliver up to 10.6 CFM of air, feeding oxygen all the way down to a diffuser depth of 50 feet.

Oxygen is the single most important thing your water needs. When it reaches every layer of the pond, you get:

• Fish and aquatic life that live longer and healthier
• An end to the stagnant water that fuels bacteria and scum buildup
• Improved water clarity and quality throughout the season
• Fewer problems in deeper ponds where oxygen struggles to reach

High volume cooling blowers keep the compressors running efficiently, day and night, all year long.

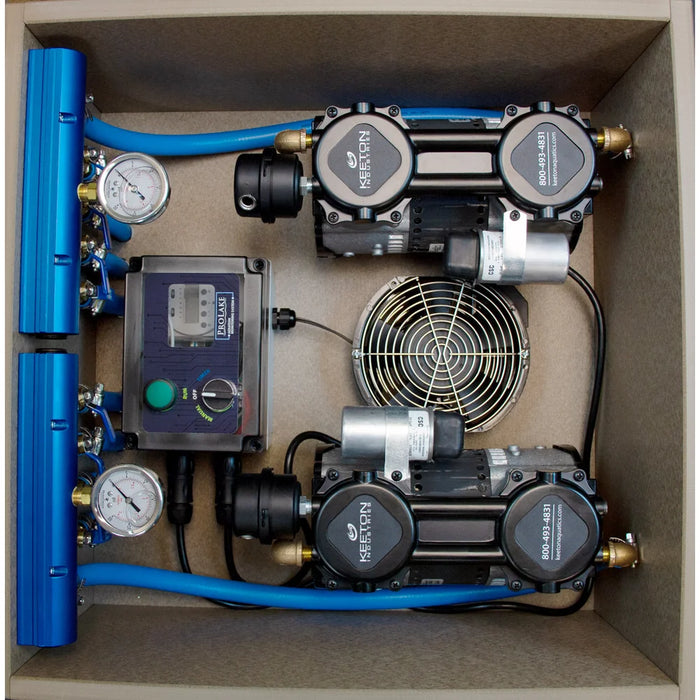

Inside the Cabinet and Timer Controls of the ProLake Electric Pond Aerator

This is the only aeration system on the market that comes with a programmable timer, giving you full control over exactly when your pond gets aerated. The UL Listed timer packs in everything you need to run things on your schedule:

• Seven-day, 24-hour control for precise timing
• Power outage backup so your schedule survives interruptions
• Manual override whenever you want to run it on demand
• Permanent schedule retention and a locking hasp for security

Everything is housed in a durable, 3/4 inch thick cabinet lined with 1 inch ASTM certified acoustical foam, keeping operational sound down to a quiet 50/60 DB. Inside you will also find fully adjustable, brushed aluminum manifolds with 2 to 4 ports for easy future expansion, a pressure gauge, and a cooling fan. Being able to control your run times helps cut cost, save electricity, and save energy over time.

Install Your ProLake Electric Lake Aeration System Almost Anywhere

Have a pond or lake that sits far from a convenient power source? No problem. You can place the cabinet away from the water's edge wherever electrical hookups are easier to reach.

The cabinet can be installed up to 4,000 feet away from the water by running a 1/2 inch PVC line to a remote manifold. From there, airlines run out to the Duraplate diffusers. This flexibility makes the system a natural fit for a wide range of settings:

• HOAs and golf courses
• Recreational, retention, and industrial retention ponds
• Farm ponds and aquaculture ponds
• Ski parks and zoological displays

A completely green, eco-friendly way to keep your water healthy with very little maintenance required. For step-by-step setup guidance, refer to the Electric Installation Manual available with this system.

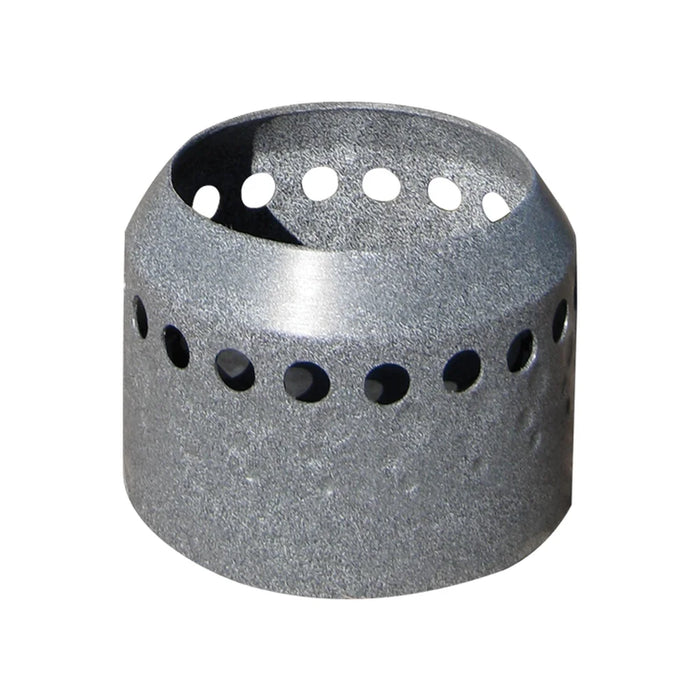

Non-Clogging Duraplate Diffusers That Shrug Off Debris

The Duraplate diffusers are where the air meets the water, and these are built rugged. They are non-clogging and self-cleaning, so they keep working without constant attention.

• Capable of withstanding 500+ lbs of pressure
• Shrouded and protected parts that stay safe from debris and predators
• Designed for a maximum operating depth of 50 feet

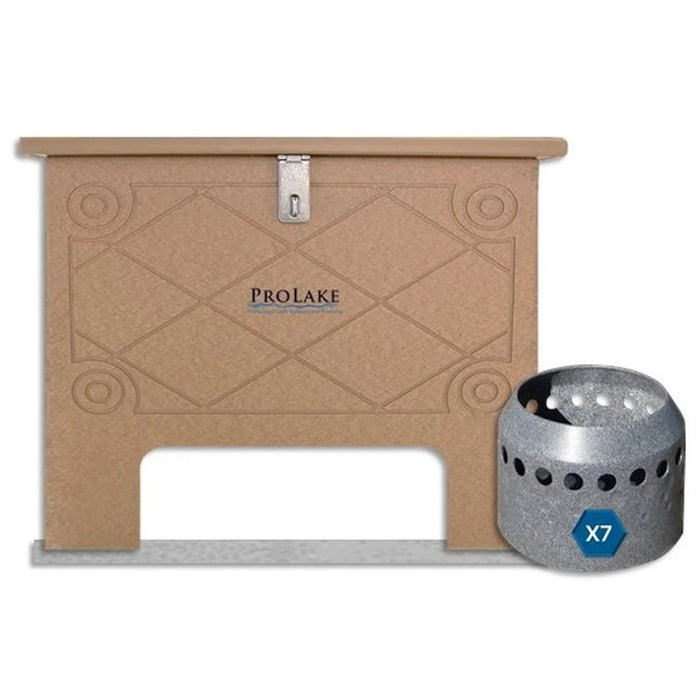

Configuration: Choose the cabinet only setup with no diffusers, or the complete package that includes 7 Duraplate diffusers. Looking for replacement parts or accessories down the road? We carry parts and accessories for both electric and solar aeration systems.

Choose the Voltage That Matches Your ProLake Electric Water Aeration System Setup

Match the system to your available power supply with two voltage options. Voltage: available in 115V or 230V. Both configurations run the same twin 1/2 HP compressor setup and deliver the same oxygenating performance, so you simply pick the option that fits your electrical service.

The 115V compressors draw 8.6 amps and the system pulls 655 watts, keeping operation energy efficient whichever voltage you select.

Product Specs

Product Videos, Data Sheets, and Resources

To learn more before and after your purchase, take advantage of the available resources for this system, including product videos and data sheets:

• ProLake2 Data Sheet for complete product specifications
• Electric Installation Manual for setup instructions

Having trouble with odor, sludge, or fish kills in your water system? You can also get a free pond analysis and recommendations to help match the right solution to your body of water.

Product Attachments

ProLake 2.7 Electric Pond Aerator Spec Sheet
