ProLake 1.4 Electric Aeration System 4 Acre 1/2HP

At the heart of the setup sits a custom-built ½ horsepower compressor that moves up to 5.3 cubic feet of air per minute. That air travels to the diffusers sitting on the bottom, lifting oxygen-poor water and mixing the whole column top to bottom.

• Available in 115V or 230V to match your electrical setup
• Pushes air to diffusers set as deep as 50 feet
• Runs day and night, even on cloudy days, with very little upkeep
• Quiet operation at 50/60 DB thanks to the sound-deadening cabinet

Eliminating stratification and stagnation is the foundation of better water quality. More dissolved oxygen means longer, healthier lives for fish and aquatic plants, and far less of the sludge and odor that make water uninviting.

Open the cabinet and you will find everything working together. The programmable timer is what sets this apart from other options, giving you full control over exactly when your water gets aerated.

• Seven-day, 24-hour control so you decide the schedule
• Power outage back up and permanent schedule retention
• Manual override and a locking hasp for security
• UL Listed for peace of mind

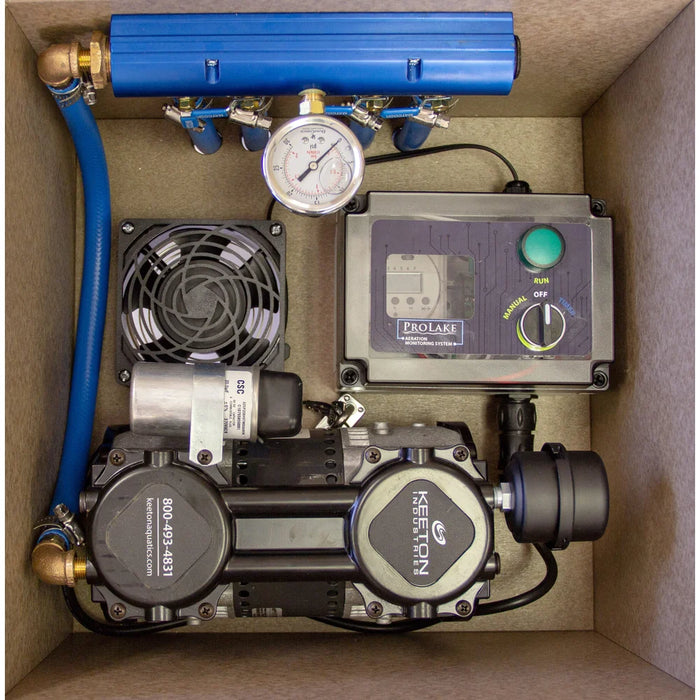

Alongside the timer, the cabinet holds a fully adjustable four-port brushed aluminum manifold for easy expansion, a pressure gauge, a high-volume cooling fan, and the compressor. The manifold feeds the airlines running out to the Duraplate™ diffusers, which resist clogging and clean themselves as they work.

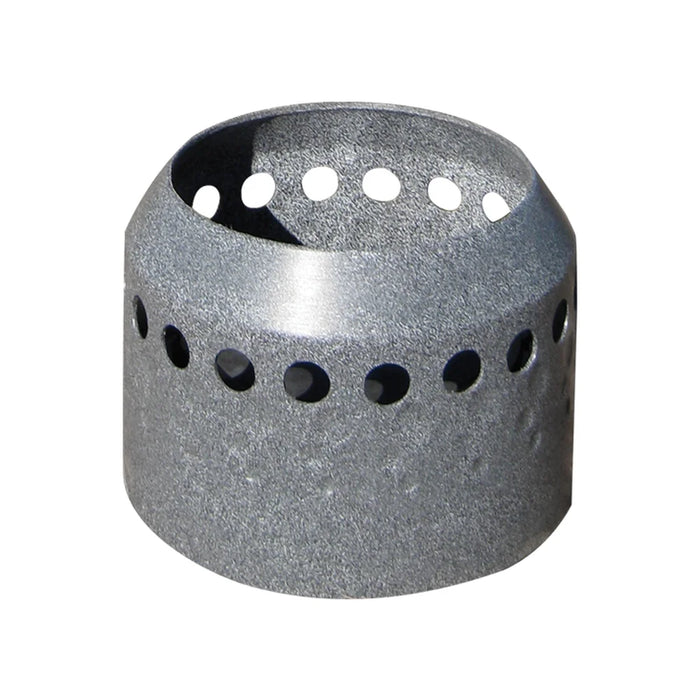

When your configuration includes diffusers, you get Duraplate™ diffusers designed to last. These are not cheap plastic or thin metal parts. They handle 500+ lbs of pressure and keep their internal parts shrouded and protected from debris and predators.

Because they are non-clogging and self-cleaning, the diffusers keep delivering steady oxygen without the constant maintenance that lesser hardware demands. Your ProLake Electric Lake Aeration System stays working with minimal fuss.

Your water does not have to be next to an outlet. The cabinet can sit away from the water's edge wherever electrical hookups are more convenient.

• Install the cabinet up to 4,000 feet away by running a ½ inch PVC line to a remote manifold
• From the remote manifold, airlines run out to the Duraplate™ diffusers
• The 18"W x 18"L x 17"T cabinet is durable and built with a ¾ inch thick wall

Electric aeration is a completely green, eco-friendly choice, and keeping the equipment on dry land makes it easy to reach and service.

Pick the setup that fits your project and budget:

• Cabinet Only (115V or 230V): the cabinet and internal components, no diffusers
• 4 Duraplate Diffusers (115V or 230V): the full system with four diffusers, no airline

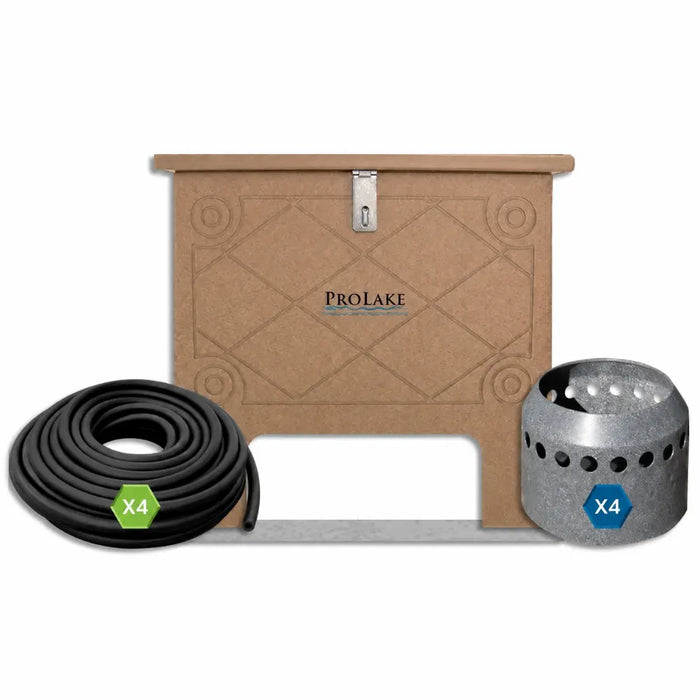

• 4 Duraplate Diffusers With 400' Self Weighted Airline (115V or 230V): the ProLake 1.4+ comes with 400 feet of Alpine™ weighted airline, adding four 100-foot rolls of Alpine™ ½" weighted airline for a total of 400 feet

The model naming is straightforward: the 1 is the number of compressors, the 4 is the number of diffusers, and the + means rolls of Alpine™ weighted airline are included.

This system suits a wide range of water features and settings:

• HOA ponds and retention ponds
• Golf courses and ski parks
• Recreational ponds and lakes
• Industrial retention ponds and farm ponds
• Aquaculture ponds and zoological displays

Wherever fish, aquatic life, and clean-looking water matter, steady aeration is the base for lasting results. Trouble with odor, sludge, or fish kills? Contact Us for a free pond analysis and recommendations.
