ProLake 1.1 Aeration System 1/2HP up to 1 Acre

At the heart of this system sits a custom-built ½ HP compressor that moves up to 5.3 CFM of air down to depths of 50 feet. That air rises through the water and lifts oxygen-poor water from the bottom to the surface, breaking up the stratified layers that lead to fish kills and foul odors.

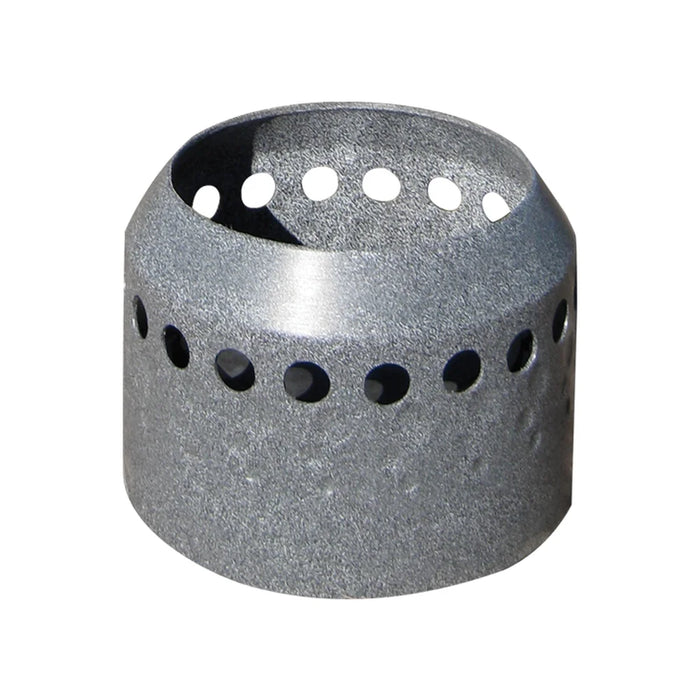

• Non-clogging Duraplate™ diffusers that are self-cleaning and shrouded to keep out debris and predators
• Diffusers rugged enough to withstand 500+ lbs
• High-volume cooling blowers and a built-in cooling fan to keep the unit running efficiently
• Fully adjustable brushed aluminum manifold with a 4-port design for easy future expansion

Oxygen is the single most important thing you can add to your water. With steady aeration, your fish and aquatic life live longer and healthier while your pond stays balanced.

This is the only aeration system on the market with a built-in timer, and it puts you in full control of when your water gets aerated. The UL Listed timer gives you exact scheduling so you decide the run times that suit your pond.

• Seven-day, 24-hour control for precise scheduling
• Power outage backup and permanent schedule retention
• Manual override whenever you need it
• Locking hasp for security

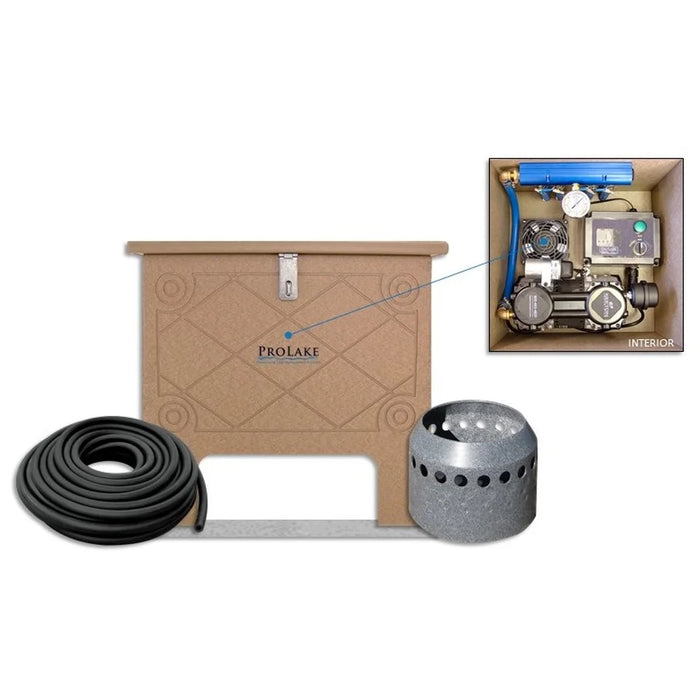

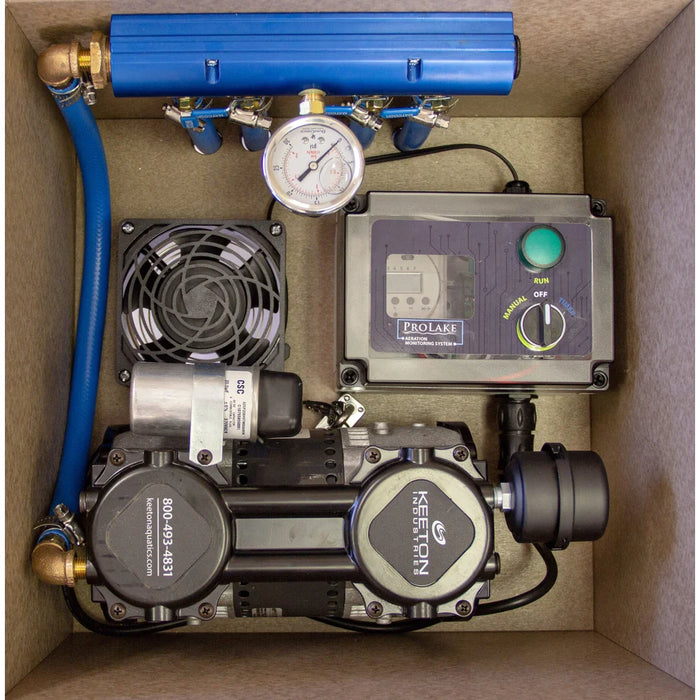

Everything is housed inside a durable, sound-deadening cabinet with ¾-inch walls, operating at a quiet 50/60 dB. Inside you will also find a pressure gauge to monitor performance at a glance.

Not all aeration is equal. Stagnant water in deeper ponds breeds bacteria and scum that harm your aquatic life and leave your water looking unappealing. Constant bottom-up circulation solves that at the source. Here is how this system stands apart from cheaper units:

• ¾-inch thick cabinet instead of thin plastic or metal
• 4-port manifold for easy expansion versus no extra ports
• Custom-built compressor rather than a mass-produced one
• Rugged, shrouded diffusers protected from debris and predators
• Durable ½-inch airline versus the common 5/8-inch airline

Have a remote pond or an awkward spot for electrical hookups? No problem. You can set the cabinet away from the water's edge where power is easier to reach. Run a ½ inch PVC line up to 4,000 feet from the cabinet to a remote manifold, then route the airlines out to the Duraplate™ diffusers from there.

The compact cabinet measures 18"W x 18"L x 17"T, and an optional Level-Aer™ equipment pad (24" x 24" x 3") is available to set it on. This is a completely green, eco-friendly option that requires very little maintenance while running around the clock, even on cloudy days.

This system fits a wide range of water bodies up to one acre:

• HOA and community ponds
• Golf courses and ski parks
• Recreational ponds and lakes
• Retention and industrial retention ponds
• Farm ponds and aquaculture ponds
• Zoological displays

Pick the voltage and kit that match your site and budget:

• Voltage: Available in 115V or 230V
• Cabinet Only: The aeration cabinet on its own ($2,332.37)
• 1 Duraplate Diffuser: Cabinet plus one Duraplate diffuser ($2,539.96)
• 1 Duraplate Diffuser with 100' Self Weighted Airline: Cabinet, one Duraplate diffuser, and a 100-foot roll of Alpine™ ½" weighted airline ($2,722.72)

The 1.1+ configurations include a 100-foot roll of Alpine™ weighted airline so you are ready to install right out of the box.
