Oase ProfiClear Premium XL Gravity Drum Filter 60 Micron Self-Cleaning

Crystal-Clear Water With the Oase ProfiClear Premium XL Gravity Pond Filter

Tired of murky, debris-filled koi pond water that never quite stays clean? Say goodbye to constant manual maintenance. This fully automatic, self-cleaning modular filter polishes the water of large koi and swim ponds by sieving out solids down to 60 microns, then pumps sparkling clean water straight back where it belongs. Installed below pond level, it works quietly in the background while you enjoy your pond, and you can even monitor it right from your phone.

• Filtration: Sieves pond water down to 60 microns to keep debris out and fish healthy.
• Pond size: Handles ponds up to 104,000 gallons.
• Flow rate: Operates between 6,600 GPH and 17,400 GPH.
• Setup: Installs below pond level for a hidden, tucked-away look.
• Self-cleaning: Automatically cleans by sensor, timer, or manual trigger, no scrubbing needed.
• Controller: Wall-mounted panel with digital thermometer and On/Off, Menu, and Clean buttons.
• Remote access: Pairs with the Oase Control app when used with the Garden Cloud Controller (sold separately).
• Modular design: Connects with a Moving Bed or Standing Bed Module plus a Gravity-fed Discharge Module for complete filtration.
• Build: Durable GFK Duroplast construction with removable screens, spray bar, and slide valve drain.
• Connections: Seven DN 100 inlets requiring 4" rubber couplings and two 180mm outlets.
• Pairing options: Works with Bitron Premium UVC clarifiers and AquaMax Eco pumps sized to your fish load.
• Guarantee: Backed by the Clear Water Guarantee for light, medium, and heavy fish loads.

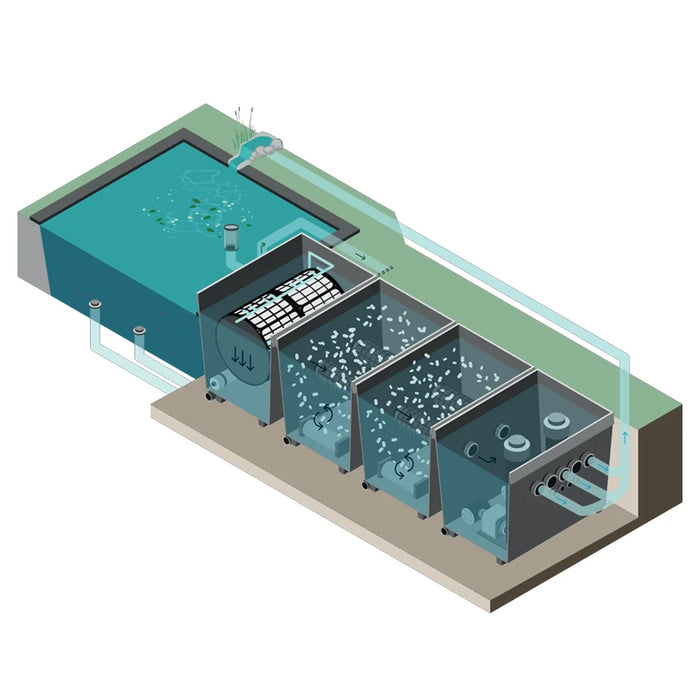

How Gravity Powers the Oase ProfiClear Premium XL Gravity Filter System

This is a flow-through filter system that sits below the surface of your pond and lets gravity do the heavy lifting. Dirty pond water enters at one end, moves through each connected module, and clean water is pumped back to the pond from a pump housed in the discharge side.

• Installs below pond level for a hidden, tucked-away setup, with the connected modules sitting on a concrete pad
• Takes in dirty water at one end while returning filtered water at the other
• Handles ponds up to 104,000 gallons
• Flow range from a minimum of 6,600 GPH up to a maximum of 17,400 GPH

To complete the system, pair the drum unit with a ProfiClear Premium XL Moving Bed Module or Standing Bed Module plus the ProfiClear Premium XL Gravity-fed Discharge Module.

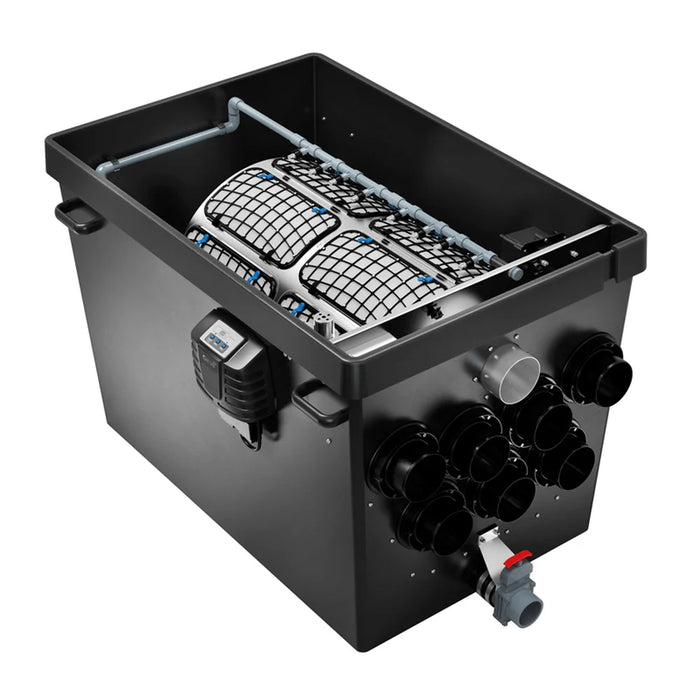

60 Micron Screen Filtration Inside the Oase ProfiClear Premium XL Gravity Drum Filter

At the heart of the unit sits the Drum Filter Module, which sieves and separates solids from incoming pond water down to an impressive 60 microns. That means fine debris gets caught before it ever reaches the biological stages, keeping your water polished and your fish healthy.

• Coarse debris extraction right down to 60 microns

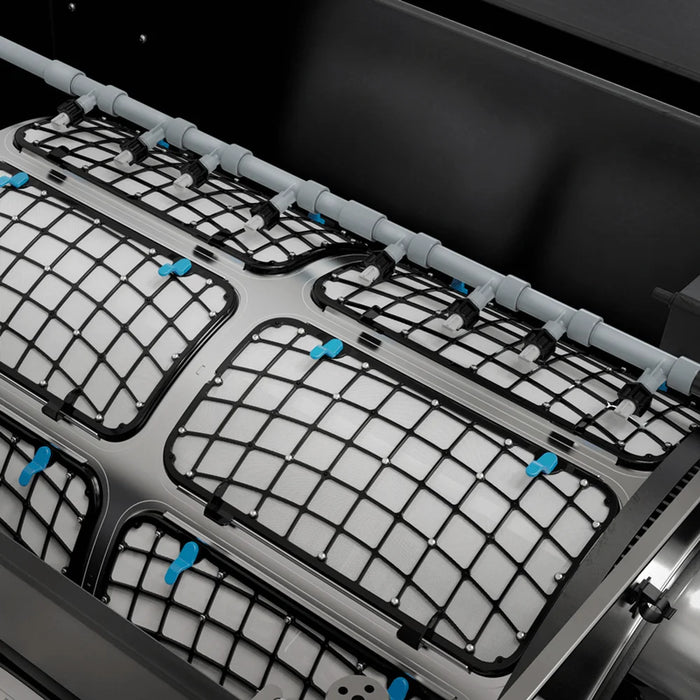

• Fine 60 micron screen panels held securely by blue clips around a curved stainless drum
• A grey high-pressure spray bar runs above the screens to keep them clear

Automated Cleaning and Oase Control

No more scrubbing screens by hand. The drum cleans itself automatically using a high-pressure pump, and you decide how it triggers.

• Cleaning by sensor, by time interval, or manually whenever you want

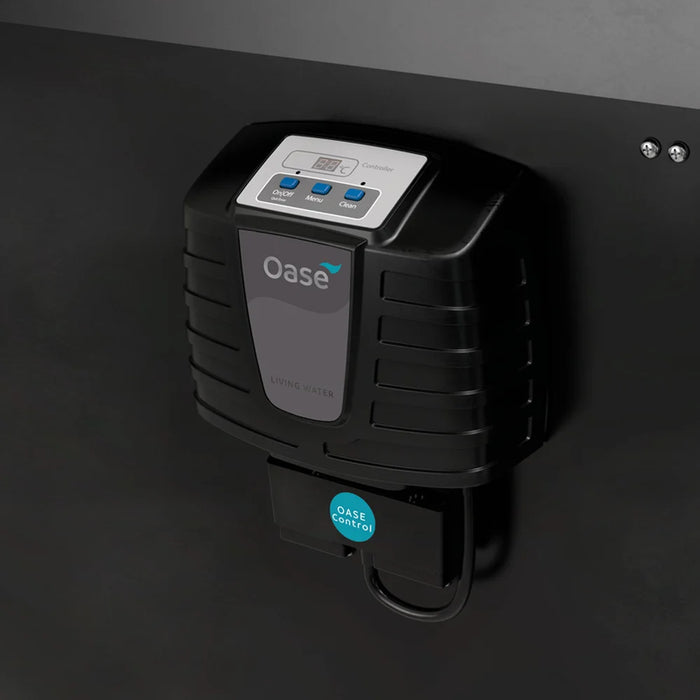

• Wall-mounted controller with a digital thermometer display plus On/Off, Menu and Clean buttons, and an Oase Control connection tag below the unit
• Operate and monitor remotely through the Oase Control app with the Oase Control System

The Garden Cloud Controller needed for remote app access is sold separately, so you can add smart monitoring when you are ready.

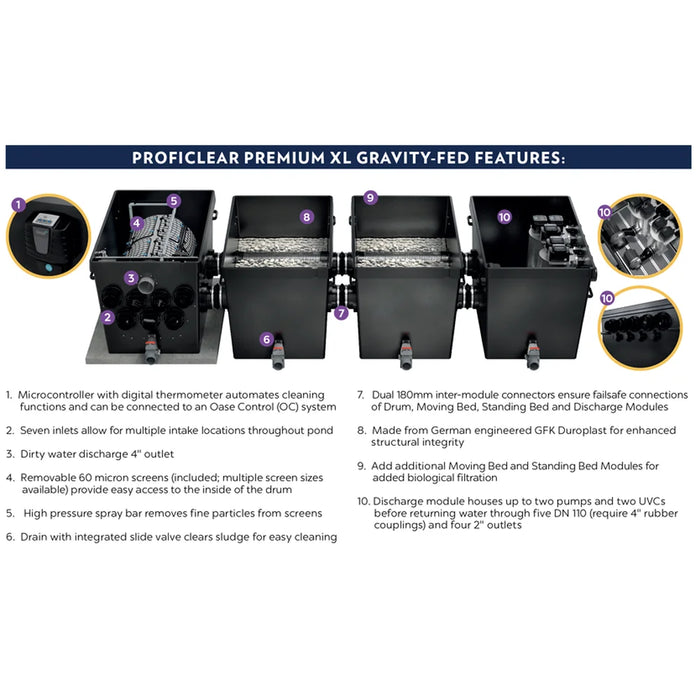

Modular Filtration System Features

Built as a connected four-module system, this filter lets you tailor the mechanical and biological stages to your pond. Each module links to the next, giving water a clear path through drum, bio and discharge chambers.

• Seven black DN 100 inlets that require 4" rubber couplings, plus two grey 180mm outlets
• Rugged GFK Duroplast construction for lasting durability

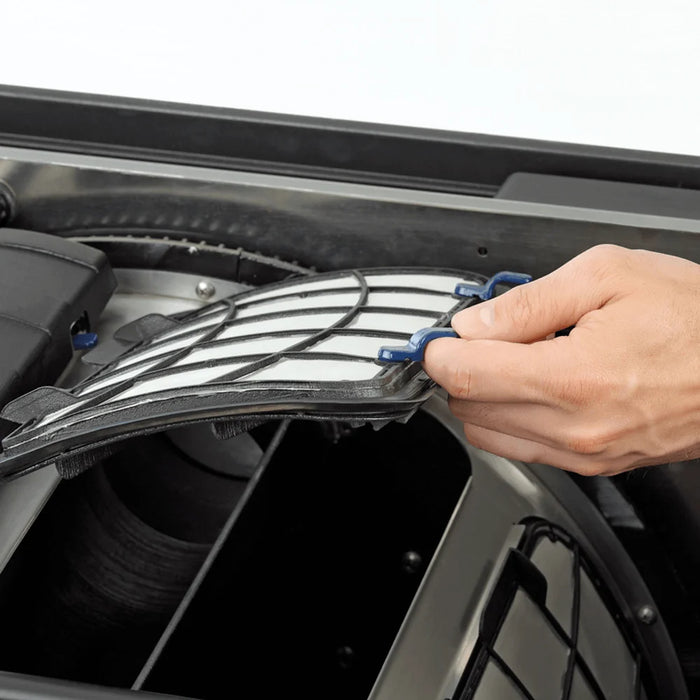

• Removable 60 micron screens, spray bar, a grey slide valve with a red handle at the bottom for sludge drainage, and inter-module connectors
• Add bio modules and a discharge module to match your setup

Matched Components for the Oase ProfiClear Premium XL Gravity Koi Pond Filter

Get the best results by pairing the filter with recommended pumps, UVC clarifiers and lighting sized to your fish load.

• UVC: Bitron Premium 60 or Bitron Premium 180
• Pumps: AquaMax Eco Classic 6800, AquaMax Eco Premium 11500, or AquaMax Eco Expert 7100 12V
• Clear Water Guarantee coverage across light, medium and heavy fish loads

Fish load capacity scales with your pond: up to 104,000 gallons for light loads, up to 52,000 gallons for medium loads, and up to 26,000 gallons for heavy loads.
