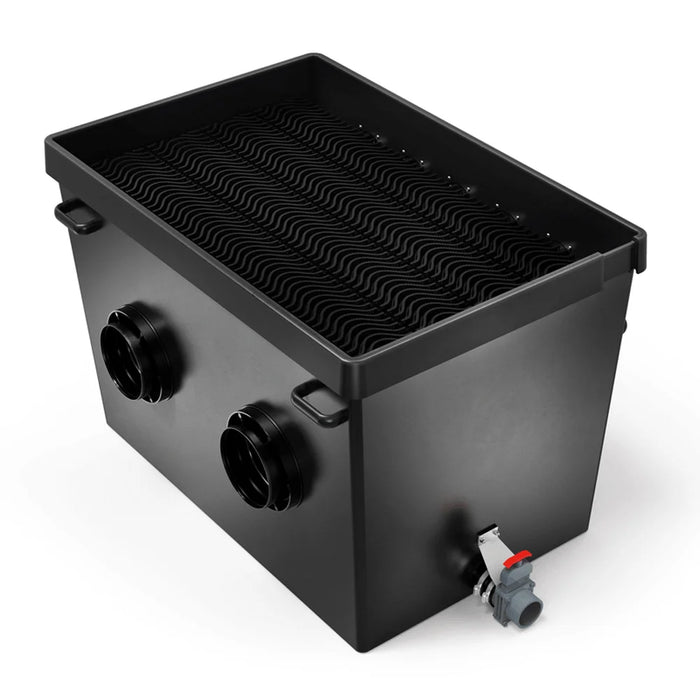

Oase ProfiClear Premium XL Discharge Module - Pump Fed ClearWave Bio Filter

Crystal Clear Water With the ProfiClear Premium XL Discharge Module - Pump Fed Bio Filter

Struggling to keep your large pond clean and clear? The final stage of your pump-fed filter build handles the heavy lifting of biological filtration, sending polished water back to your pond. Packed with ClearWave standing bed media and built with five flexible outlet options, this module gives you the plumbing freedom and clean-water results your koi and fish deserve.

• Biological Filtration: ClearWave standing bed media hosts beneficial bacteria for crystal clear pond water.
• Outlet Options: Five 4"/DN 110 outlets allow flexible plumbing routing to fit your pond layout.
• Inlet Connections: Two 180mm inlets connect this module to the preceding stage of your filter system.
• Flow Range: Handles 6,600 GPH to 13,200 GPH.
• Easy Maintenance: Integrated sludge drains allow quick draining and flushing without disassembly.
• System Role: Final discharge stage of the ProfiClear Premium XL pump-fed filter system, returning polished water to the pond.
• Durable Construction: Built from rugged GFK Duroplast for long-lasting performance.
• Dimensions: 52-1/2"L x 34-1/2"W x 32-1/4"H.

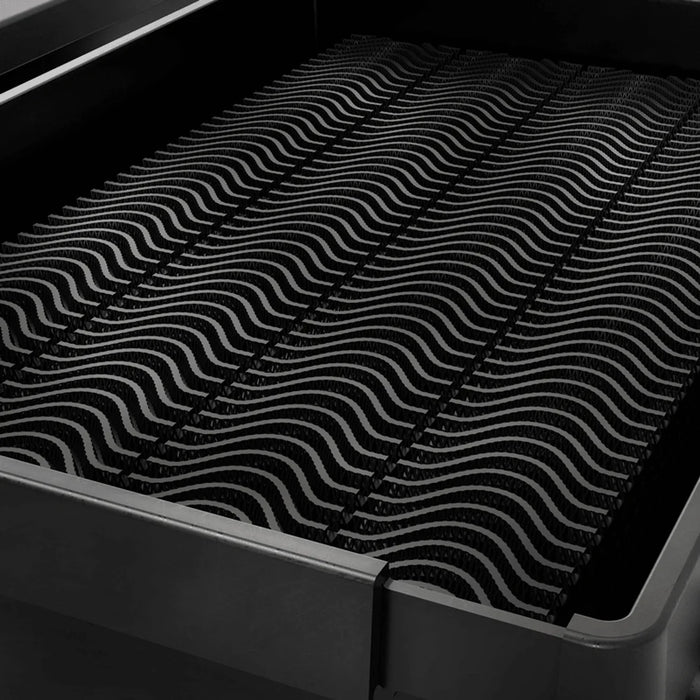

ClearWave Standing Bed Biological Filtration

At the heart of this module sits ClearWave standing bed media, a dense wavy plastic surface that hosts the beneficial bacteria your pond needs to break down waste. This biological filtration step converts harmful compounds and helps deliver the crystal clear water that makes a healthy pond shine.

• High-surface-area media gives bacteria plenty of room to colonize
• Standing bed design keeps the media working continuously as water passes through
• Purpose-built as the biological polishing stage in your pump-fed system

Five DN 110 Outlets for Flexible Plumbing

Tired of fighting your filter's fixed connections? This module gives you five 4"/DN 110 outlets, so you can route return water back to your pond exactly how your layout demands.

• Five DN 110 outlets each require a 4" rubber coupling
• Two 180mm inlets for connection to the preceding module
• Handles a flow range of 6,600 GPH to 13,200 GPH

Easy Cleaning With Integrated Sludge Drains

Maintenance should be quick, not a chore. Every module in the system, including this one, drains and flushes through integrated sludge drains, so you can clear out captured debris and keep your filtration running strong without disassembly.

• Built-in sludge drains make draining and flushing simple
• Streamlined maintenance keeps your pond water quality consistent

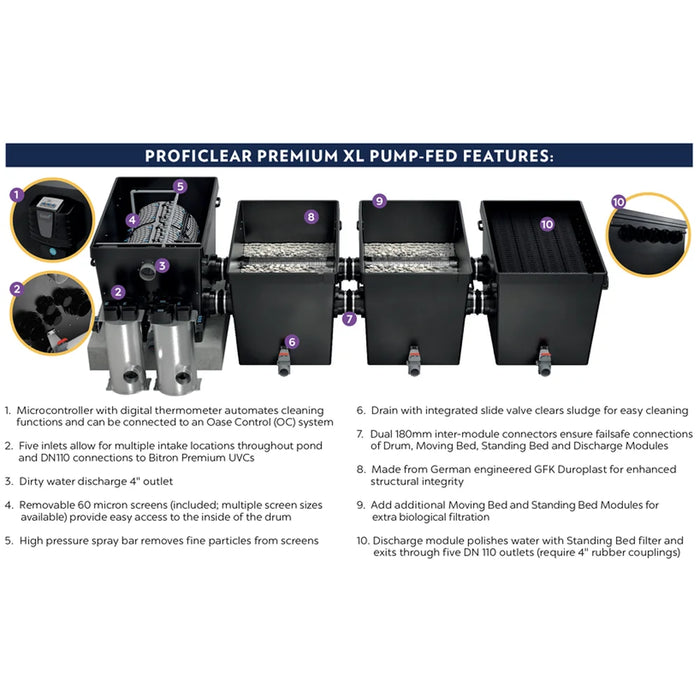

Filter System Features Inside the ProfiClear Premium XL Discharge Module - Pump Fed

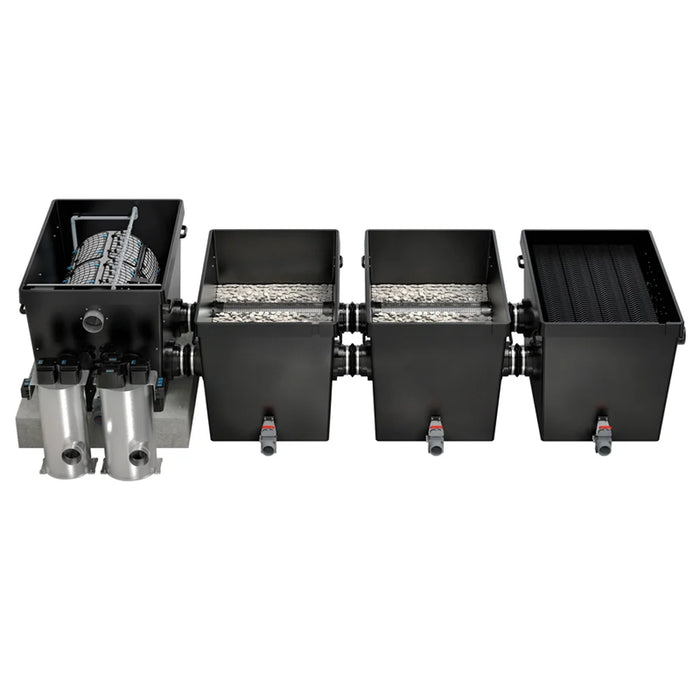

This discharge module is designed to work as part of the larger ProfiClear Premium XL pump-fed filter system. Together, the connected modules move water through mechanical screening, moving bed and standing bed biological stages, before this module returns polished water to your pond. The full system is managed by a microcontroller and links together through inter-module connectors for a seamless flow path.

• Connects via two 180mm inlets to the module ahead of it
• Delivers water back to the pond through five DN 110 outlets
• Draws from the system's five inlets that feed the pump-fed build
• Mechanical screening uses 60 micron screens to capture fine debris, with a dedicated dirty water discharge outlet to expel captured waste
• A spray bar helps clean the screens during operation
• Rugged GFK Duroplast construction stands up to the demands of continuous pond filtration
• Compact footprint at 52-1/2"L x 34-1/2"W x 32-1/4"H

Product Specs

Product Attachments

Oase ProfiClear Premium XL Discharge Module Manual
