Oase ProfiClear Premium XL Discharge Module - Gravity Fed Pond Filter

Maximize Plumbing Flexibility With the Oase ProfiClear Premium XL Discharge Module - Gravity Filter

Struggling to fit your pumps, UV clarifiers, and return plumbing into one tidy spot? This gravity-fed module gives you a single clean home for up to two pumps and two UVCs, with a generous set of outlets that let you route return lines exactly how your large pond demands. Handle serious flow, keep maintenance simple, and finish your filtration train the right way.

• Equipment Housing: Holds up to two pumps and two UVCs in one enclosed, open-top module.
• Flow Range: Handles 6,600 GPH to 17,400 GPH for large pond systems.
• Inlets: (2) 180mm inlets receive water from connected filter modules.
• Outlets: (5) DN 110 (require 4" rubber coupling) and (4) 2" outlets for flexible plumbing routes.
• UV Compatibility: Bitron Premium 60 and 180 UV Clarifiers mount directly onto the outlets.
• Maintenance: Integrated sludge drains with a gray slide valve and red handle allow quick flushing and draining.
• Construction: Built from durable GFK Duroplast, part of a system controlled by a microcontroller.
• System Fit: Final stage of the ProfiClear Premium XL gravity-fed filtration train, built for ponds up to 104,000 gallons.
• Dimensions: 52-1/2"L x 34-1/2"W x 32-1/4"H, matching the footprint of other XL series modules.

Gravity-Fed Pump and UVC Housing

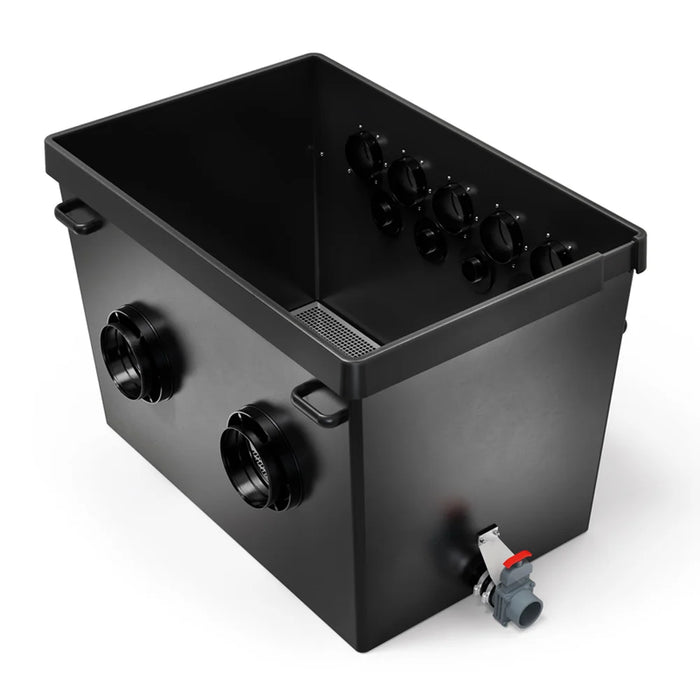

The final stage in your ProfiClear Premium XL train, this module collects clean water and sends it back to the pond. Inside the open-top interior, there's room to mount up to two pumps and two UVCs, keeping your equipment protected and out of sight. An integrated overflow grille adds extra protection during operation.

• Two 180mm inlet ports on the side wall accept water from the connected filter modules
• Moves from 6,600 GPH up to 17,400 GPH to match large-pond demands
• Bitron Premium 60 and 180 UV Clarifiers integrate directly onto the module outlets

Flexible Plumbing Outlets

Getting return lines to land where you need them is half the battle on a big install. That's why this module carries a wide mix of outlet options so you can plumb your way.

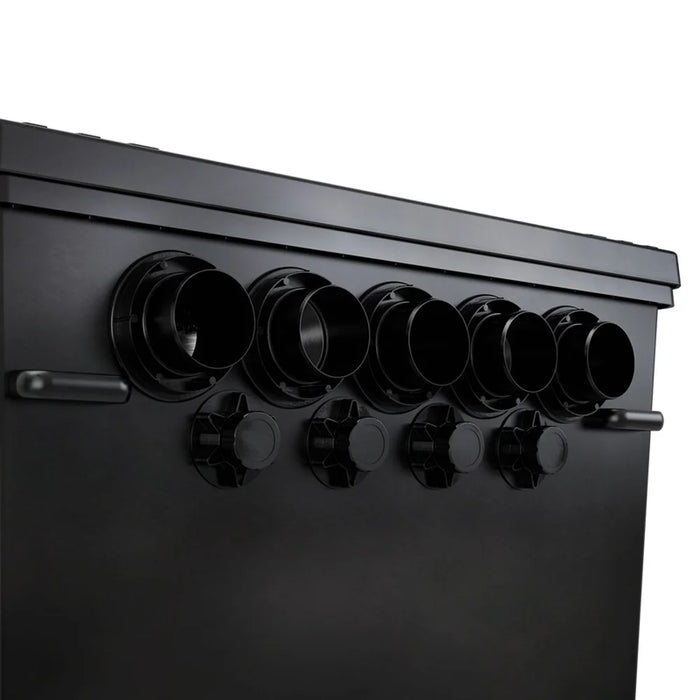

• (5) DN 110 outlets that accept 4" rubber couplings, arranged in a staggered layout across the top with directional arrows to guide your connections
• (4) 2" outlets fitted with black star-knob fittings for direct connection flexibility
• Multiple exit points let you split, redirect, and balance return flow across the pond

Easy Cleaning With Integrated Sludge Drains

Nobody wants to break down plumbing just to rinse out a module. Built-in sludge drains, operated with a gray slide valve and red handle at the base, let you flush and empty the housing quickly through a dedicated dirty water discharge, so routine cleaning stays a short job instead of a weekend project. A quick drain and rinse keeps your equipment chamber clear and your water clean.

How the ProfiClear Premium XL Discharge Module - Gravity Pond Filter Completes Your Filtration System

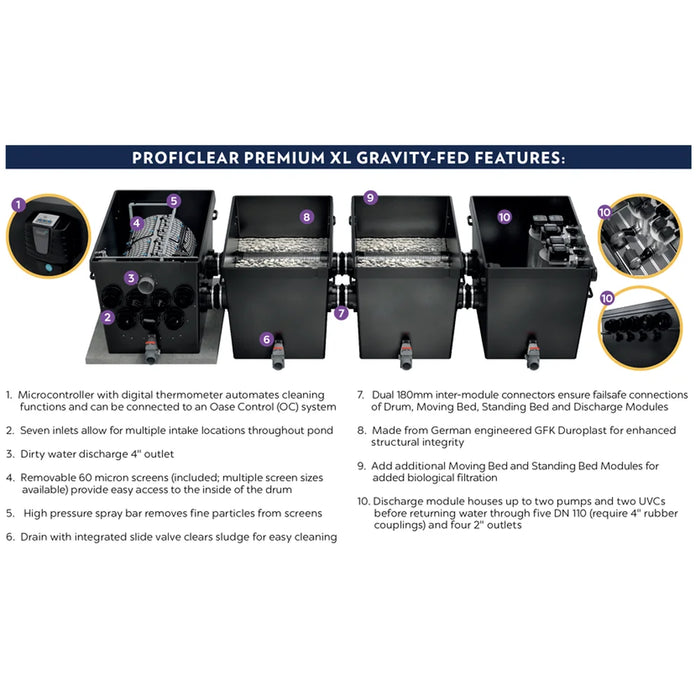

This discharge module is one piece of the larger ProfiClear Premium XL gravity-fed lineup. Pair it with drum, moving bed, and standing bed modules to build a full mechanical and biological filtration train for ponds up to 104,000 gallons. The full gravity-fed system features a microcontroller, seven inlets, dirty water discharge, removable 60 micron screens, a spray bar, sludge drains, inter-module connectors that link the units together, GFK Duroplast construction, and added biological modules. Connected modules link together to carry water from initial screening all the way through to the pump and UVC housing here.

Large Pond Installations Call for the ProfiClear Premium XL Discharge Module - Gravity UVC Housing

Big water needs big equipment. Measuring 52-1/2"L x 34-1/2"W x 32-1/4"H, this module has the internal room to hold your pumps and clarifiers while handling flow rates that smaller filters simply can't reach. Its footprint matches the rest of the XL series so your modules line up cleanly side by side.
