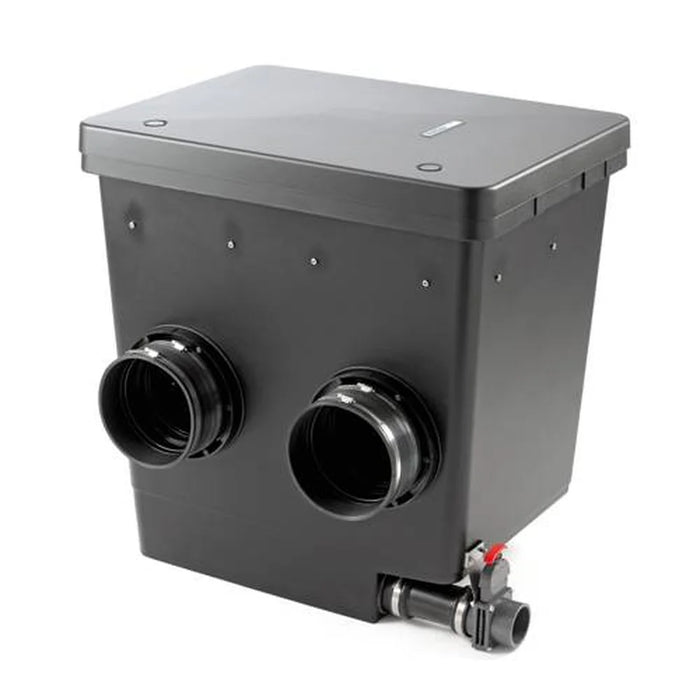

Oase ProfiClear Premium Moving Bed Module Biological Pond Filter with Hel-X Media

Boost Your Biological Filtration With the Oase ProfiClear Premium Moving Bed Module Pond Filter

Struggling to keep your koi pond crystal clear as your fish grow and your bio-load climbs? Bolt this module onto your ProfiClear Premium Compact-L Gravity-fed filter and add a whole extra stage of living, breathing biological cleanup. The floating Hel-X media gives beneficial bacteria a huge protected home, so your water stays healthy and your fish stay happy. When maintenance day comes, one pull of a handle flushes the sludge away.

• Extra Bio-Stage: Bolts onto the ProfiClear Premium Compact-L Gravity-fed filter to add a dedicated biological filtration chamber.
• Hel-X Bio-Media: Floating media offers 245 ft²/ft³ of protected surface area for beneficial bacteria.
• Easy Sludge Drain: One pull of a handle flushes debris and doubles as a winterizing drain.
• Bypass Technology: Keeps the Hel-X media tumbling while the flow path stays clear of clogs.
• Aerator Ready: Pre-installed aerator bar accepts an AquaOxy 450 (sold separately) for optional oxygen.
• Swappable Media: Trade Hel-X for PondPads whenever extra waste removal is needed.
• Simple Ports: Two 180mm inlets and two DN 150 outlets for straightforward connections.
• Flow Range: Operates between 2,640 GPH and 8,700 GPH for reliable performance.
• Compact Build: Measures 32.75"L x 26.75"W x 32.25"H, fitting neatly alongside existing gear.

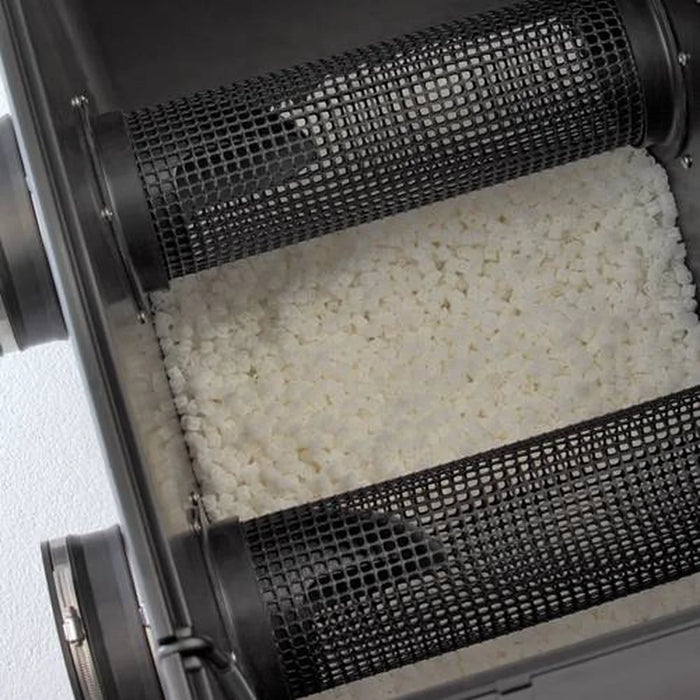

Hel-X Bio-Media Powers the Oase ProfiClear Premium Moving Bed Module Biological Filter

The heart of this module is its floating white Hel-X bio-media. Each piece packs a tremendous protected surface area where beneficial bacteria colonize and break down waste in your water.

• 245 ft²/ft³ of protected surface area for bacterial colonization
• Loose, floating white media that fills the chamber for maximum contact with pond water
• Attaches in series to add a dedicated biological stage to your existing setup

More bacteria means faster conversion of harmful waste, keeping your pond balanced even as the fish load increases.

Sludge Drain for Debris Removal and Winterizing

Cleaning shouldn't be a chore. A built-in blue sludge drain assembly with an orange handle flushes settled debris right out of the module with the simple pull of a handle.

• Clears accumulated debris in seconds, no tools required
• Doubles as a winterizing drain to empty the module for the cold season
• DN 75 water discharge outlet routes waste water cleanly away

Bypass Technology Keeps the Oase ProfiClear Premium Moving Bed Module Bio Filter Moving

Great filtration depends on the media staying in motion. This module uses innovative bypass technology to keep the Hel-X bio-media tumbling for optimal movement while the flow stays clear.

• Media circulates freely so bacteria stay active across the entire bed
• Clear flow path prevents clogging and keeps water moving through the chamber

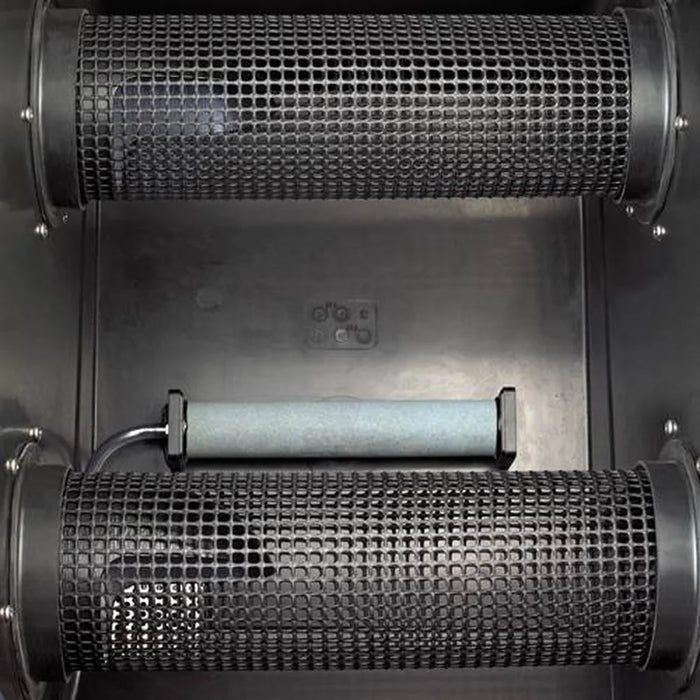

• Dual stacked black mesh cylinders hold the media in place while allowing full water exchange

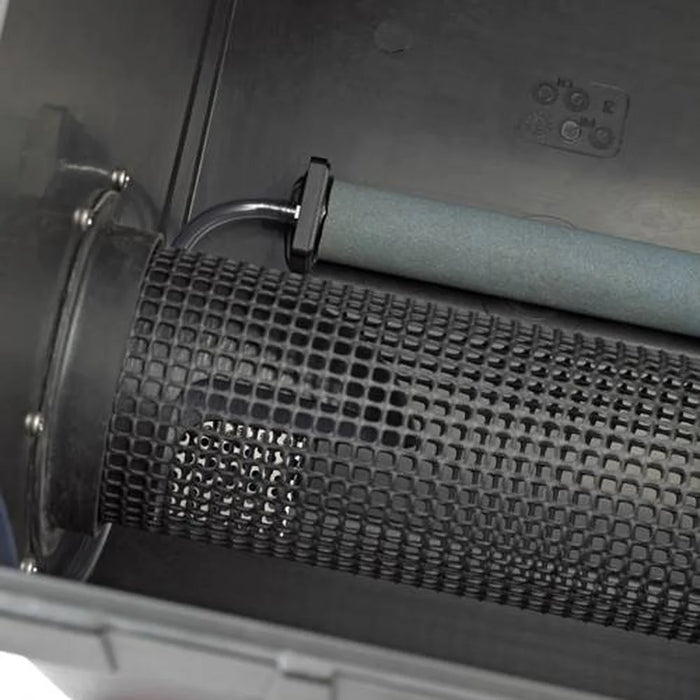

Optional Oxygen With Pre-Installed Aerator Bar

Want to supercharge your bacteria? A pre-installed grey aerator bar is ready to add extra oxygen the moment you need it.

• Adds optional oxygen by connecting an AquaOxy 450 (sold separately)
• Higher oxygen levels help beneficial bacteria work harder
• Flexible air line and the grey bar are already mounted inside, so setup is quick

Swap Hel-X Media for PondPads When Needed

Your pond's needs change, and so can this module. The Hel-X media can be switched out for PondPads if you need additional waste removal.

• White Hel-X media pours right out of its plastic bag and loads easily into the open black tank, with a stainless inlet flange visible inside
• Choose Hel-X for maximum biological surface area, or PondPads for more waste capture
• Flexibility to tune your filtration as your fish and water conditions evolve

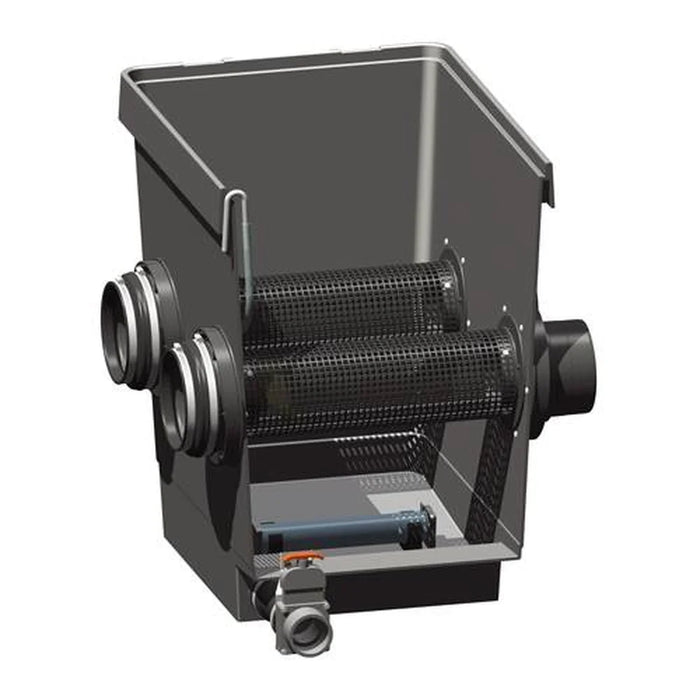

Simple Connections for the Oase ProfiClear Premium Moving Bed Module Filtration System

This module fits right into the ProfiClear Premium lineup as a series add-on for the Compact-L Gravity-fed filter. Its port layout keeps connections straightforward.

• Two 180mm inlets feed water in from the main filter
• Two DN 150 outlets return filtered water to your pond loop
• Compact footprint that stacks neatly alongside your existing gear

Flow Range Fits the Oase ProfiClear Premium Moving Bed Module Koi Pond Filter Setup

Match the module's flow range to your system for reliable biological performance. It handles a maximum flow of 8,700 GPH and a minimum flow of 2,640 GPH, keeping the media active across a wide operating window.

• Wide flow range suits a broad variety of pond sizes and pump setups
• Steady circulation ensures bacteria stay fed and the bed stays in motion
