Oase ProfiClear Premium Compact M Pond Filter Drum Filter 21,000 Gallon

Hands-Free Pond Clarity With the Oase ProfiClear Premium Compact M Gravity EGC

Tired of hauling out filter foams and rinsing media every weekend? This pump-fed drum filter does the dirty work for you. A rotating 80 micron screen catches solids before they ever break down into muck, then a built-in high-pressure pump washes the screen clean and flushes the waste out the drain. Add 40 liters of Hel-X bio-media churning in a moving bed chamber, and you get mechanical polishing plus serious biological filtration in one compact unit sized for ponds up to 21,000 gallons.

• Self-cleaning drum: A rotating 80 micron sieve catches solids while a built-in high-pressure pump washes the screen and flushes waste out automatically.
• No manual media cleaning: No foam pads to squeeze and no media to rinse, waste leaves the system through the drain and discharge outlet.
• Biological filtration: 40 liters of white Hel-X bio-media tumble in a moving bed chamber, keeping bacteria active for ammonia and nitrite conversion.
• Built-in aeration: Integrated linear air stones plus an included AquaOxy 450 connection kit add extra oxygen to the module.
• Flexible cleaning modes: Choose manual, time interval, or full automatic sensor-triggered cleaning.
• Centralized control option: Compatible with the Easy Garden Control (EGC) system for full command of the filter.
• Discreet installation: Can be buried up to the UVC mounts so the housing blends into the landscape.
• UV ready: Dual inlets accept an optional Bitron C UV Clarifier for direct mounting.
• Pond sizing: Handles up to 21,000 gal light, 10,500 gal medium, or 5,250 gal heavy fish loads.
• Flow range: Rated for 2,000 to 4,000 GPH with a 2" inlet and 4" outlet.
• Clear Water Guarantee: Pair with the recommended Oase pump and Bitron C 110 UVC for guaranteed clarity three feet down.

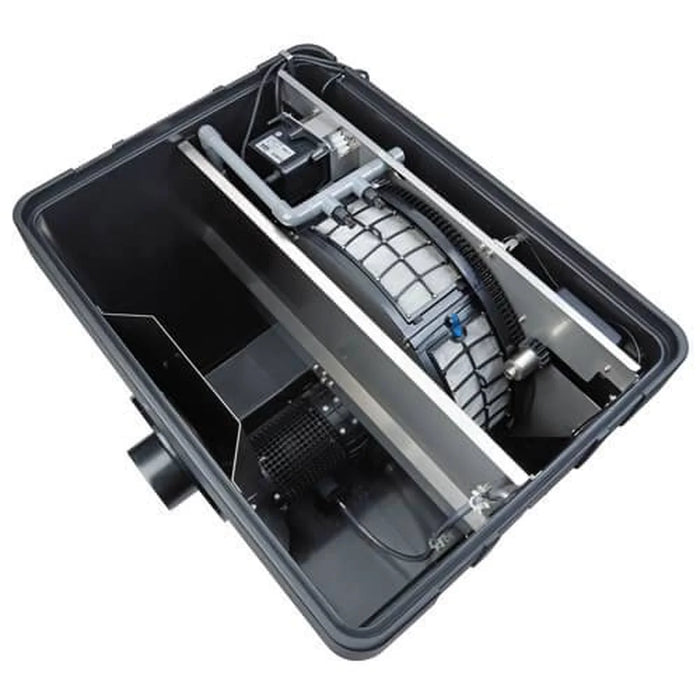

Self-Cleaning Drum Technology Inside the Oase ProfiClear Premium Compact M Pond Filter

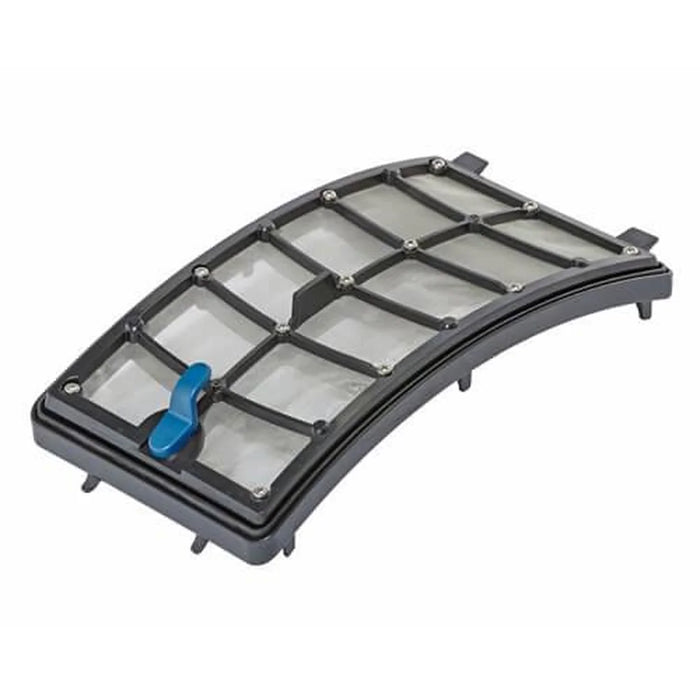

Water flows through a rotating drum fitted with a removable 80 micron sieve, a curved panel of fine stainless mesh held in a framed grid with mounting tabs and a blue release lever for quick removal. Solids collect on the screen surface rather than passing into your biological stage, so fish waste and debris get pulled out of the system early instead of rotting inside the filter.

• High-pressure cleaning pump built in, so the drum washes itself
• Spray bar blasts fine particles off the micro sieve, running the length of the chamber
• Drive motor turns the drum inside the housing, with internal dividers separating the chambers
• Drain with integrated slide valve clears sludge whenever you need it
• 4" dirty water discharge outlet carries waste away

No foam pads to squeeze, no media to rinse. The waste leaves the pond and never comes back.

Automatic Control Makes the Oase ProfiClear Premium Compact M Filter System Hands-Free

The micro control system, a side-mounted unit with its own display and cabling, decides when the drum needs attention. Pick the mode that suits your pond:

• Manual cleaning when you want direct control
• Time interval cleaning on a set schedule
• Full automatic cleaning triggered by sensor, so the drum rinses only when the water level tells it to

You can also run everything through the Easy Garden Control (EGC) system for centralized command of your ProfiClear.

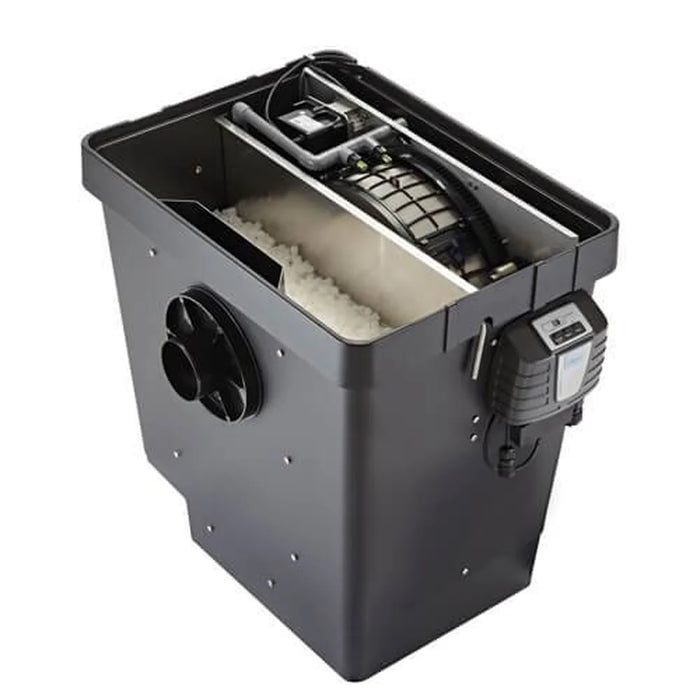

Moving Bed Biology and Aeration in the Oase ProfiClear Premium Compact M Biological Filter

Behind the drum sits a Moving Bed System loaded with 40 liters of white Hel-X bio-media. The media tumbles constantly in the current, which keeps bacterial colonies thin, active and fed. Those colonies convert ammonia and nitrite, the invisible toxins that stress fish long before the water ever looks cloudy.

Integrated linear air stones push extra oxygen into the module, and a connection kit for the AquaOxy 450 comes included so you can hook up aeration right away. More oxygen means faster, more stable biological conversion.

Flexible Installation and UV Ready Plumbing

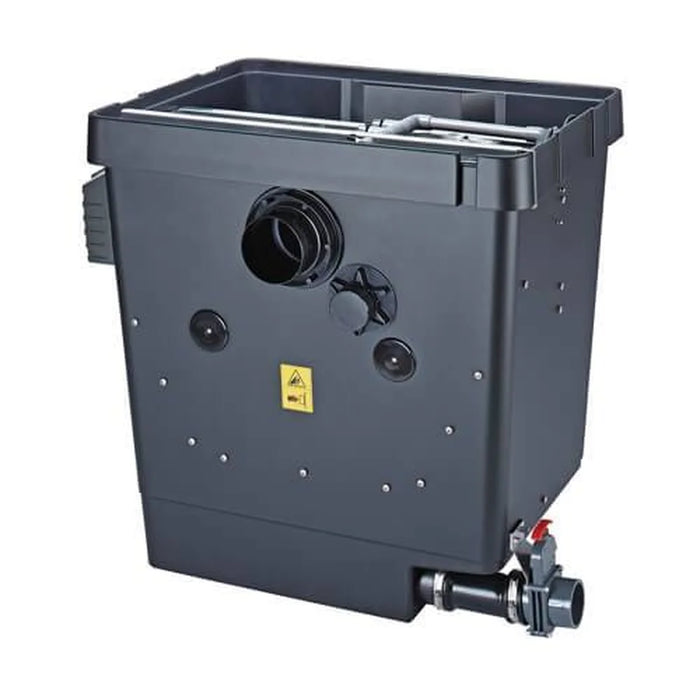

The housing can be buried up to the UVC mounts, so it disappears into your landscaping instead of sitting on display beside the pond. Dual inlets accept an optional Bitron C UV Clarifier, letting you mount the UV directly to the filter rather than plumbing it separately, with the UVC mounting bosses left blanked until you add one. The black housing carries a warning label, and the bottom sludge drain fitting uses a red slide valve.

• 2" inlet and 4" outlet
• Flow range of 2,000 to 4,000 GPH
• 35"L x 27"W x 32"H footprint

Clear Water Guarantee When You Match the Right Pump and UVC

Run this filter with an appropriately sized Oase pump and UV clarifier and you are covered by the Clear Water Guarantee: you will be able to read the 1" mark on a measuring tape three feet below the surface. Matched components work together to strip suspended solids, remove ammonia, nitrite and nitrate, and bathe the water in ultraviolet light from an EPA-certified clarifier to inhibit algae growth.

Recommended pairings for the Compact M with a Bitron C 110:

• AquaMax Eco Classic 3600
• AquaMax Eco Premium 4000
• AquaMax Eco Expert 6800
• AquaMax Eco Expert 5300 12V

Pond sizing shifts with fish load: up to 21,000 gal light, up to 10,500 gal medium, up to 5,250 gal heavy.
