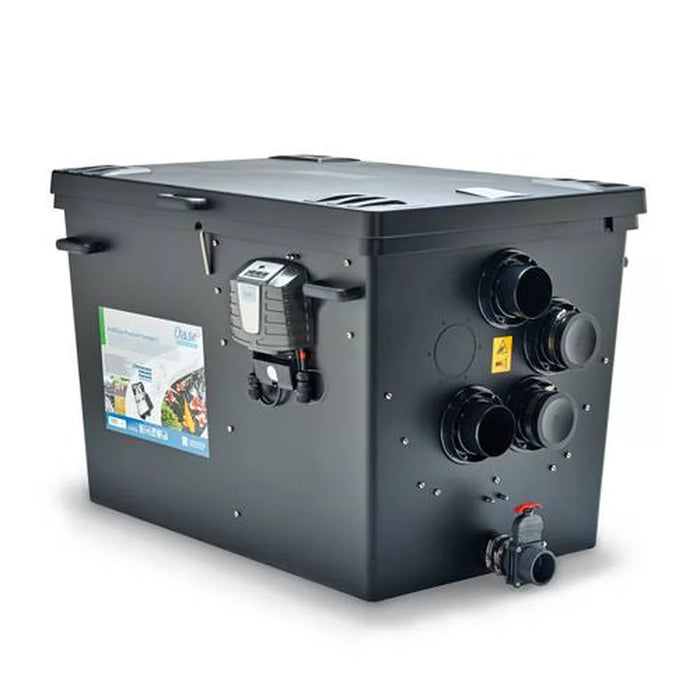

Oase ProfiClear Premium Compact-L Gravity Fed EGC Filter Self-Cleaning Drum 60 Micron

Crystal Clear Koi Water With the Oase ProfiClear Premium Compact-L Gravity Fed Drum Filter

Green water, drifting debris and a pond you can't see into? Your fish deserve better. This gravity-fed drum filter pulls solids out of the water down to 60 microns, then keeps working while you relax, cleaning its own screen on a schedule you set. Large koi ponds and recreational ponds up to 37,000 gallons get mechanical polishing and biological filtration in one housing, with a microcontroller that handles the dirty work for you.

• Fine Filtration: Removable 60 micron screen strains fine particles that cloud water and feed algae.
• Self-Cleaning: Built-in 87 psi pump powers the spray bar to blast waste off the mesh automatically.
• Cleaning Modes: Choose manual, time interval, or full automatic sensor cleaning to match your pond's needs.
• Built-In Thermometer: Digital display on the controller keeps pond temperature visible at all times.
• Biological Filtration: 60 liters of included Hel-X moving bed media handles up to 19 oz of food waste daily.
• Room to Grow: Add up to 20 additional liters of Hel-X media as your fish load increases.
• Multiple Intakes: Three inlets let you pull from bottom drains and skimmers throughout the pond.
• Pond Size: Handles large koi and recreational ponds up to 37,000 gallons.
• Smart Home Integration: Compatible with Easy Garden Control (EGC) for connected pond management.
• Sludge Removal: Integrated slide valve drain clears settled waste on demand.
• Long Reach: 16' + 16' cord gives flexibility when powering from the filter pit.
• System Requirement: Needs an Individual Module to complete the filtration setup.

Self-Cleaning Drum Filtration Down to 60 Microns

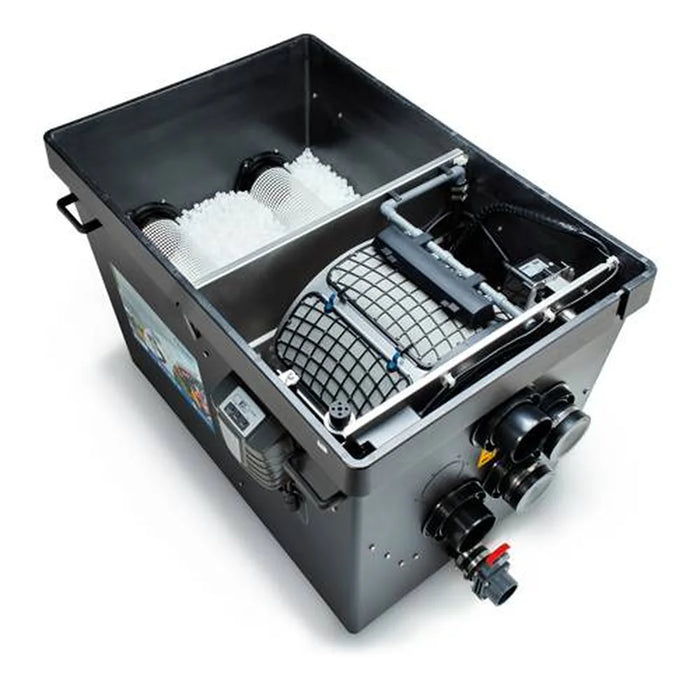

Water flows through a rotating drum fitted with a removable 60 micron screen, trapping the fine particles that cloud a pond and feed algae. As the sieve loads up, a built-in 87 psi high pressure cleaning pump drives the spray bar, blasting captured waste off the mesh and out through the automatic waste discharge outlet. No pulling filter pads, no hosing out mats.

• Removable screen for inspection or replacement when needed
• Spray bar lifts fine particles straight off the micro sieve
• Drain with integrated slide valve clears settled sludge whenever you want it gone

Three Cleaning Modes Run by the Onboard Microcontroller

The micro control system gives you a choice of manual cleaning, time interval cleaning or full automatic cleaning via sensor. Pick the rhythm that suits your stocking level and season, then let it run. A digital thermometer is built into the controller, so pond temperature is right there on the display while the unit automates its cleaning cycles. Cord length is 16' + 16', giving you room to reach power from the filter pit.

Moving Bed Biology With Hel-X Media Inside the Oase ProfiClear Premium Compact-L Gravity Fed Pond Filter

Mechanical filtration is only half the job. The Hel-X floating bed bio-media chamber hosts the bacteria that convert fish waste and ammonia, and this moving bed is capable of decomposing up to 19 oz of food waste per day. 60 liters of Hel-X bio-media come included, and you can supplement with 20 additional liters as your fish load grows. Connections are provided for an AquaOxy 450 to boost aeration through the bed (sold separately).

Flexible Plumbing for the Oase ProfiClear Premium Compact-L Gravity Fed EGC Filter

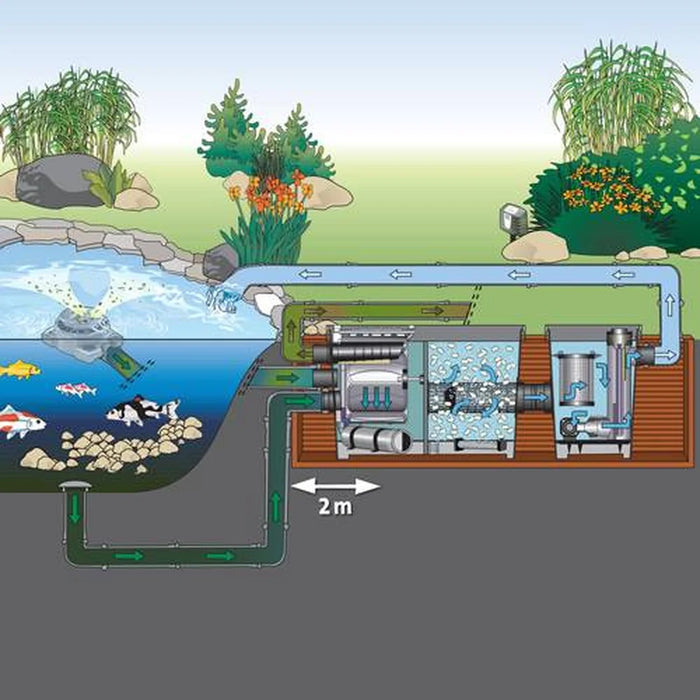

Three inlets let you draw from multiple intake locations throughout the pond, so bottom drains and skimmers can all feed the same filter. On the outflow side, dual outlets align with the Moving Bed and the Individual Modules, keeping the chain of chambers neatly connected in the pit beside your pond.

• Inlets: (3) DN 110, requires 4" rubber coupling (not included)
• Outlet: DN 110, requires 4" rubber coupling (not included)
• Flow range of 2,640 GPH to 6,600 GPH
• Requires an Individual Module to complete the system

Easy Garden Control Compatibility for Hands Off Pond Management

The microcontroller connects to an EGC system, tying this filter into your wider Easy Garden Control setup alongside other compatible equipment. Add the Easy Garden Control unit and the connection cables you need, and your filtration joins the rest of the garden on one control platform.

Replacement Parts Keep This Drum Filter Running for Years

Wear items are available individually, so a single worn component never means a new filter. Parts listed for the Compact-L Gravity-Fed include:

• Drum Shaft (SKU 16288) and Drum Bearing (SKU 18791)
• Roller (SKU 18794)
• Controller (SKU 72538)
• Pondpads in 10 L and 20 L, plus Pondpads Biomedium 10 L bags
• Easy Garden Control unit, 8' and 32' connection cables, and cable connector

Product Specs
