Oase ProfiClear Premium Compact L Gravity Drum Filter Self-Cleaning

Hands-Free Pond Clarity With the Oase ProfiClear Premium Compact L Drum Filter

Tired of hauling dripping foam pads out of a filter box every weekend? Your koi pond deserves better, and so do you. This fully automatic pump-fed filter takes over the dirty work, spinning solids off a fine screen and flushing them straight out of the system while beneficial bacteria quietly handle the toxic stuff. Pond water up to 31,500 gallons stays polished, healthy, and honestly clear, all while you stand back and enjoy the view.

• Automatic operation: Pump-fed drum filter cleans itself with a built-in high-pressure pump and spray bar, no manual rinsing needed.
• Pond capacity: Handles up to 31,500 gallons, with recommended sizing of 7,875 to 31,500 gallons depending on fish load.
• Filtration screen: Removable 80 micron sieve strips out fine waste before it can break down into ammonia.
• Biological media: Moving Bed System with 40 liters of Hel-X bio-media keeps bacteria oxygenated and constantly active.
• Cleaning control: Choose manual, timed, or sensor-triggered automatic cleaning through the micro control system.
• Flow range: Rated from 2,640 GPH to 5,280 GPH for flexible pump matching.
• Connections: 3" inlet, 4" outlet, and a 4" dirty water discharge with an integrated slide valve drain.
• UV ready: Dual inlets accept an optional Bitron C UV Clarifier for added water clarity.
• Aeration included: Integrated linear air stones plus a connection kit for the AquaOxy 450 keep the media bed active.
• Smart integration: Compatible with the Easy Garden Control (EGC) system for full oversight.
• Installation: Housing can be buried up to the UVC mounts for a discreet setup.
• Water clarity assurance: Backed by the Clear Water Guarantee when paired with a properly sized Oase pump and UV clarifier.

Mechanical Filtration Power Behind the Oase ProfiClear Premium Compact L Filter System

Water arrives through a 3" inlet and passes through a rotating drum before it ever reaches the biology. Fine waste never gets the chance to break down into ammonia, because it leaves the system first.

• Flow range from 2,640 GPH up to 5,280 GPH for flexible pump pairing
• Dual inlets ready to accept an optional Bitron C UV Clarifier
• Clean water discharge through a 4" outlet back to the pond
• Housing can be buried up to the UVC mounts for a tidy, hidden installation

How the Oase ProfiClear Premium Compact L Drum Screen Filter Cleans Itself

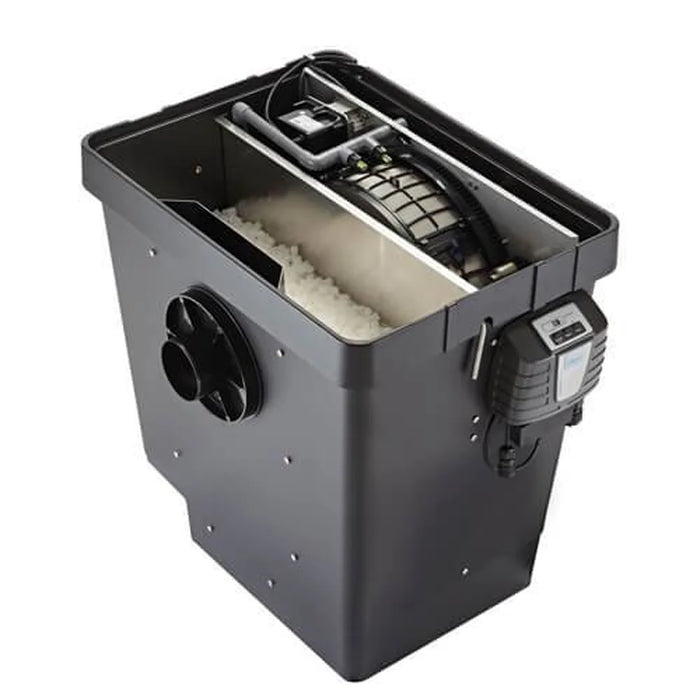

The heart of the unit is a drum wrapped in a removable 80 micron sieve. As debris collects on the mesh, a built-in high-pressure cleaning pump feeds a spray bar that blasts fine particles off the screen from the outside in. Nothing gets squeezed through, and nothing needs rinsing by hand.

Waste rinsed off the sieve drops into a collection channel and exits through the 4" dirty water discharge. A drain with an integrated slide valve lets you clear accumulated sludge whenever you want it gone.

Sit Back While the Oase ProfiClear Premium Compact L Rotating Screen Filter Does the Work

A micro control system runs the show, and you decide how involved you want to be:

• Manual cleaning on demand
• Timed intervals you set yourself
• Full automatic cleaning triggered by sensor, so the drum rinses only when it actually needs to

Sensor-driven operation means no wasted water on a clean screen and no clogged screen during a heavy feeding week. You can also connect the unit to the Easy Garden Control (EGC) system for complete oversight of your ProfiClear.

Active Bacteria Thrive Inside the Oase ProfiClear Premium Compact L Self-Cleaning Filter

Past the drum, water enters a Moving Bed System loaded with 40 liters of Hel-X bio-media. The media tumbles constantly in the current, which keeps bacterial colonies fed, oxygenated, and free of dead spots. Those colonies are what strip ammonia and nitrite out of your pond water.

Integrated linear air stones push extra oxygen into the module to keep the bed churning and the bacteria working hard. A connection kit for the AquaOxy 450 is included, so hooking up aeration is straightforward.

Matched Components Back the Oase ProfiClear Premium Compact L Biological Filter With a Clear Water Guarantee

Run this unit with an appropriately sized Oase pump and UV clarifier and you are covered by the Clear Water Guarantee: you will be able to read the 1" mark on a measuring tape three feet below the surface.

Fish load determines how much pond this filter can handle:

• Light load up to 31,500 gallons
• Medium load up to 15,750 gallons
• Heavy load up to 7,875 gallons

Recommended pairings include the Bitron C 110 clarifier alongside the AquaMax Eco Premium 4000, AquaMax Eco Expert 6800, AquaMax Eco Expert 5300 12V, or AquaMax Eco Expert 7100 12V. Filter pumps designed to pass solids deliver fish waste to the filter, bacteria eliminate dissolved nutrients, and an EPA-certified clarifier bathes the water in ultraviolet light to inhibit algae growth.
